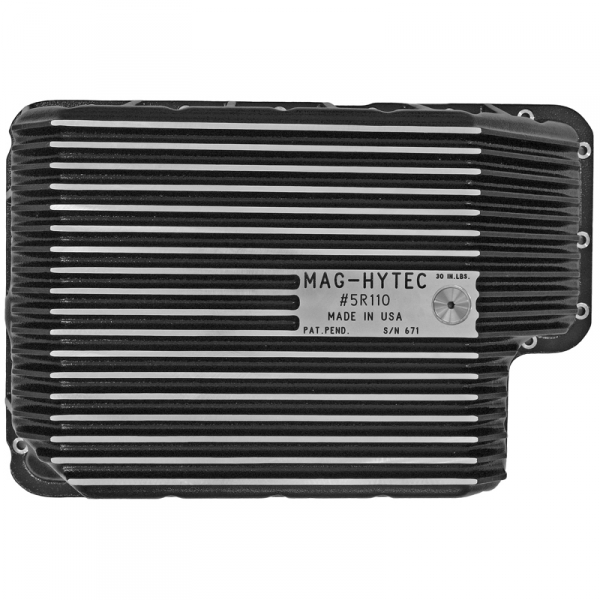

Mag-Hytec F5R110 Transmission Pan
PART#
F5R110 | SKU MHF5R110
★★★★★
Vehicle Fitment For:
2003-2007 Ford 6.0L Powerstroke (Equipped With 5R110 Transmission)
See full application list below
$397.10
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Description
The Mag-Hytec F5R110 Transmission Pan adds additional fluid and cooling to the 5R110 Transmission in your 2003-2007 Ford 6.0L Powerstroke. Built from a cast aluminum construction, this transmission pan has a finned design to aid in cooling as the fins help remove heat from the fluid. The added rigidity can also help to add strength to the case of your transmission. The built-in drain plug also allows you to eliminate the mess when changing transmission fluid and the 1/8” NPT port allows you an easy access point for a transmission temperature gauge sender if you choose to install one. Uses Ford factory transmission pan filter (not included).
Features:
- 5.5 Qts Over Stock
- Magnetic Drain Plug
- 5R110 Transmission Pan
- 1/8 NPT Temperature Sender Port
- Finned Aircraft Aluminum Construction
- O-Rings Require No Gaskets Or Sealants
- Deep High-Capacity Sump For Maximum Cooling
- 303 Hardware Except Allen Head Cap Screws Are Zinc Plated
- Requires Only Three Allen Key Wrenches (Included) For Installation And Service
Instructions & Tech Info
Reviews For Mag-Hytec F5R110
Overall Rating
/5
3 Reviews
Rating Snapshot
2
1
0
0
0
Verified Buyer
Great pan, instructions lacking
Kevin (California) | May 26th, 2026
XDP got me this pan in 2 days, and except for instructions that should have noted that the transmission tail mount needs to be loosened and the transfer case raised to allow access to the 3 rear bolts, it went on easy. I had to go to the hardware store and get 12 more of the 20mm bolts, as the 25mm ones it came with bottomed out and wouldn’t tighten.
Verified Buyer
Mag-hytec 5R110 transmission pan
JB (California) | November 13th, 2021
XDP got me this pan when they are sold out everywhere else. Really nice pan and got it quick. I am very happy.
Shop Foreman
Art Furtado (Calif) | May 31st, 2009
Fits perfect lowers temp to 120 no load 15000 lbs at 175 fluid will last forever. best thing you can do for trans.
Write a Review
Review this product and help other XDP customers make informed decisions!
Frequently Asked Questions
Will stock dip stick work with deep trans. pans ? After market transmission pans
Yes, the factory dipstick will still work and show accurate levels.
Is this a guaranteed fit on an Excursion?
Yes, the Mag-Hytec F5R110 Transmission Pan will fit your Excursion if it has the 6.0L Powerstroke with 5R110 Transmission.
Ask A Question
Ask a question about this product
Please allow up to 1 business day for reply.
Specifications For Mag-Hytec F5R110
MPN
F5R110
SKU
MHF5R110
ID
3595
Manufacturer Name
Mag-Hytec
Shipping Weight
20.00 lb.
Shipping Length
14 in.
Shipping Width
21 in.
Shipping Height
7 in.
Fuel Type
Diesel
