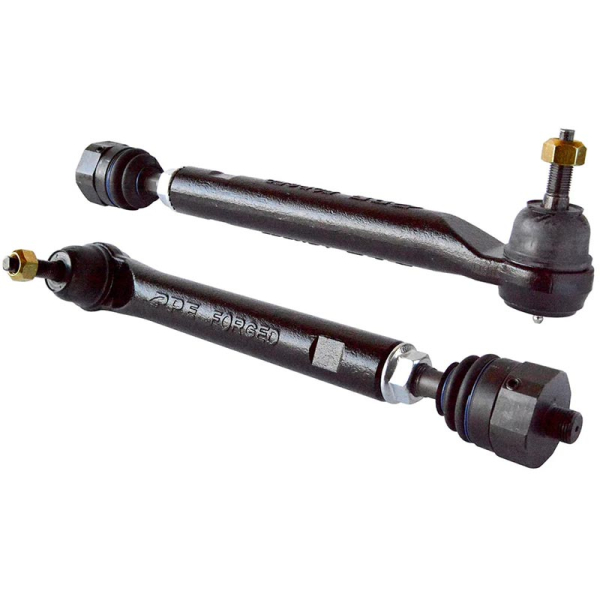

PPE 158031500 Stage 3 Tie Rod Assemblies
PART#
158031500 | SKU PPE158031500
★★★★★
Vehicle Fitment For:
2001-2010 GM Silverado/Sierra 2500HD/3500HD
See full application list below
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Description
The PPE 158031500 Stage 3 Tie Rod Assemblies feature a larger, robust design to maximize the reliability of the steering system in your 2001-2010 GM 2500HD/3500HD. Factory tie rod assemblies bend and break. They are simply too small and weak to get the job done, especially in high-stress situations. While they are generally strong enough for stock performance, street driven pick-ups, with the added stress that come from larger tires, racing, and off-road use, wont hold up for long.
The fix for these weak tie rod assemblies comes in three stages. All three are bolt-on parts and require no extra modifications to factory components. A two or four wheel alignment is recommended post install. The best they have; these tie rods are overkill for most, for sure, but when it comes to steering components, failure is not something that can be stood for. Featuring 1.5 inch wide forged tie rod, massive 2-1/3 inch ball joints and a much larger and stronger inner ball joint these tie rod assemblies are the best of the best.
Features:
- 3/4" Toe Adjusting Shaft
- Lock Nut For Spindle Connection
- Grease Fitting For Easy Maintenance
- Heavy-Duty Forged Steel Construction
- Limited Lifetime Warranty
When Compared To Factory Components:
- 53% Larger Tie Rod Body
- 28% Larger Inner Ball Joint
- 35% Larger Outer Ball Joint
- 30% Larger Toe Adjusting Shaft
Note:
When using on trucks with aftermarket lift kits, the end user must trim one-half-inch off the outer portion of both tie rod ends.
PPE Stage3 Tie Rods are engineered to fit GM stock steering components. Some aftermarket steering manufacturers have changed the placement of the tie rod mounting perch on the front spindle, which then requires a shorter tie rod. The Stage3 Tie Rod outers are fully-threaded internally and may be trimmed to accommodate the relocated aftermarket perch location. An experienced installer should measure to determine the appropriate trim length.
Manufacturer Warranty*:
Limited Lifetime
Limited Lifetime
Instructions & Tech Info
Installation Info
Reviews For PPE 158031500
Long service life
Llyman (Michigan) | March 15th, 2026
I’ve had these tie rods for over ten years old LLY. Put almost 100k on them. Still mint.
Not a long term product
Chad (VA) | October 7th, 2025
Had these for a little over 2 years. Have a lot of play in the movement. Beefy but not durable.
Verified Buyer
Tie rods
Mike (Skiatook Ok.) | June 14th, 2024
Better than expected, highly recommend for anyone that owns a 06 Silverado 4x4 with a Duramax.
Verified Buyer
Terrible
Bryan (Iowa) | September 24th, 2023
I have had these for a year and they tore the boot which is whatever so I ordered another pair because I was pleased with them before my next experience. After ordering them for the second time I received them and one of them looked like it had a big grinder mark right on the nut, the boot was all torn, the package was ripped to shreds and that was the plastic inside the box not even the box itself. The box was fine and the other one was fine. It looked like it had been a return or something but it was in terrible shape like I stated before. Xdp handled the situation very well but for the product its self I will never order them agian or any of there products. I highly recommend that you don't either.
Verified Buyer
Poe stage 3 tie rods
Josh (Owosso,mi) | April 17th, 2023
Went from the stock tie rods on my 2008 2500hd to the PPE stage 3 tie rods and made a huge differenc. More control of the truck, love them! Won’t buy anything else!
Verified Buyer
Ppe stage 3 tie rods
Bubba-J (Eastland, TX) | January 9th, 2023
Made the ride quality a little better and steering smoother.
Write a Review
Review this product and help other XDP customers make informed decisions!
Frequently Asked Questions
Ask A Question
Ask a question about this product
Please allow up to 1 business day for reply.
Specifications For PPE 158031500
MPN
158031500
SKU
PPE158031500
GTIN
840171218862
ID
31129
Manufacturer Name
PPE
Shipping Weight
18.00 lb.
Shipping Length
7 in.
Shipping Width
20 in.
Shipping Height
3 in.
Fuel Type
Diesel / Gas
Manufacturer Warranty*
Limited Lifetime
