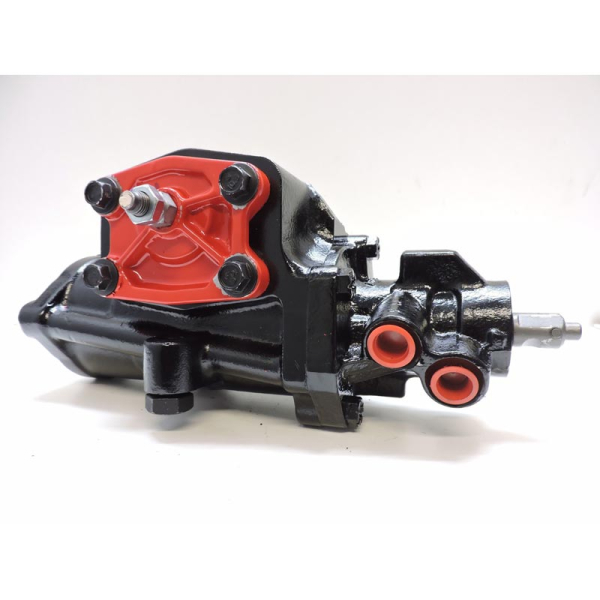

RedHead Steering Gears 2769 Steering Box (4-Bolt Cover)

Gain control of your vehicle with proper steering when you add the RedHead Steering Gears 2769 Steering Box (4-Bolt Cover) to your 2008-2010 Ford F-250/350 (Built From 7/31/07 - 2/28/2010). RedHead is a family owned and operated company with more than 40 years of experience providing quality remanufactured steering boxes. Each Steering Box is built for a direct-fit installation that fits in the factory location. Remanufactured from quality materials, each RedHead Steering Box is built to be stronger than the OE unit.

Features:

• Remanufactured
• Direct-Fit Replacement
• Meets & Exceeds Factory Specs
• Shafts Are Flame Sprayed Or Replaced As Needed
• New Control Valves Installed On Some Applications
• Housing Are Machined And Needle Bearings Installed
• Sealing Surface Polished To A Higher Polish Than New

• Sector Shaft Checked On A Lathe For Straight And True

• Worm And Piston Assembled With New Precision Fit Steel Ball Bearings

HOW DO I BLEED, OR PURGE AIR, FROM MY STEERING GEAR BOX SYSTEM?
1.    After installing the gearbox, fill the system with fluid.
2.    Raise the front wheels off the ground, do not start the vehicle.
3.    Work the steering wheel back and forth, lock to lock, 15-20 times.
4.    Leave the vehicle sit (overnight is best) at least 2 hours
5.    Top the pump reservoir off again.
6.    Work the steering wheel back and forth again 7-10 times
7.    Have a person in the vehicle and another at the pump reservoir with a container of fluid & funnel ready to pour if necessary.
8.    Instruct the person in the vehicle to start the engine. As soon as this happens, if the fluid level drops, be ready to pour in more fluid. The level must be kept at an almost full level or it will suck in air again.
9.    If this procedure is followed properly, the air problem will be solved.

Notes:

For 2008 and 2010, please check production date.
This unit started production in 08/2007 and ended in 03/2010.

This product includes a new pitman arm nut. Please torque to 350 ft-lbs.
