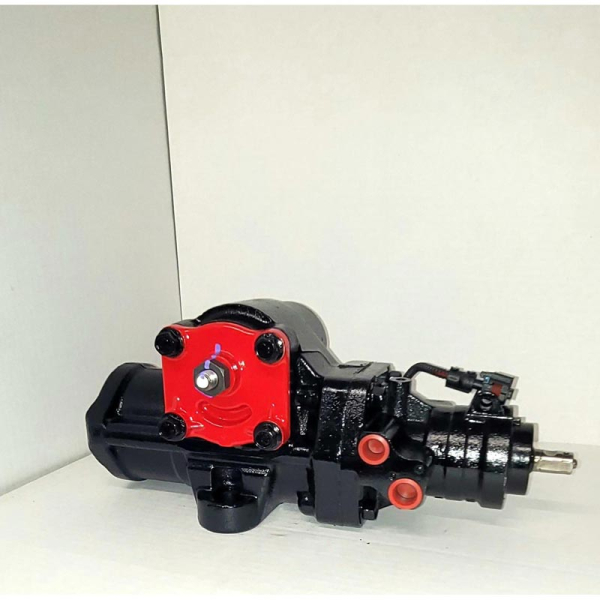

RedHead Steering Gears 2875 Steering Box
PART#
2875 | SKU RH2875
★★★★★
Vehicle Fitment For:
2014-2021 GM Silverado/Sierra 2500HD/3500HD (With Variable Assist Power Steering)
See full application list below
$756.00
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Description
Replace the damaged or worn steering gear in your GM 2500HD/3500HD with the RedHead Steering Gears 2875 Steering Box. Made for a direct-fit replacement, this Steering Box does not require any modifications for installation. Family owned and operated, RedHead has more than 40 years of experience specializing in steering boxes. Remanufactured from quality materials, each RedHead Steering Box is built to be stronger than the OE unit.
HOW DO I BLEED, OR PURGE AIR, FROM MY STEERING GEAR BOX SYSTEM?
1. After installing the gearbox, fill the system with fluid.
2. Raise the front wheels off the ground, do not start the vehicle.
3. Work the steering wheel back and forth, lock to lock, 15-20 times.
4. Leave the vehicle sit (overnight is best) at least 2 hours
5. Top the pump reservoir off again.
6. Work the steering wheel back and forth again 7-10 times
7. Have a person in the vehicle and another at the pump reservoir with a container of fluid & funnel ready to pour if necessary.
8. Instruct the person in the vehicle to start the engine. As soon as this happens, if the fluid level drops, be ready to pour in more fluid. The level must be kept at an almost full level or it will suck in air again.
9. If this procedure is followed properly, the air problem will be solved.
Features:
- Remanufactured
- Direct-Fit Replacement
- Meets & Exceeds Factory Specs
- Shafts Are Flame Sprayed Or Replaced As Needed
- New Control Valves Installed On Some Applications
- Housing Are Machined And Needle Bearings Installed
- Sealing Surface Polished To A Higher Polish Than New
- Sector Shaft Checked On A Lathe For Straight And True
- Worm And Piston Assembled With New Precision Fit Steel Ball Bearings
SPECIFICATIONS:
Ratio: 3 Turns
Ratio: 3 Turns
Weight: 29.00 lbs
Notes:
For use with electronic assist. For 2014 and up models, check to see if there an electronic cable running into the steering gear to confirm.Common Questions
1. After installing the gearbox, fill the system with fluid.
2. Raise the front wheels off the ground, do not start the vehicle.
3. Work the steering wheel back and forth, lock to lock, 15-20 times.
4. Leave the vehicle sit (overnight is best) at least 2 hours
5. Top the pump reservoir off again.
6. Work the steering wheel back and forth again 7-10 times
7. Have a person in the vehicle and another at the pump reservoir with a container of fluid & funnel ready to pour if necessary.
8. Instruct the person in the vehicle to start the engine. As soon as this happens, if the fluid level drops, be ready to pour in more fluid. The level must be kept at an almost full level or it will suck in air again.
9. If this procedure is followed properly, the air problem will be solved.
WHAT POWER STEERING FLUID SHOULD I USE?
RedHead highly recommends using the same fluid that the manufacturer of your
vehicle recommends. It is always best to use a name-brand fluid. Their
power steering gears are tested under pressure with Dexron 3 ATF before
they leave the factory. If you decide to change from what the manufacturer
recommends then Dexron 3, or comparable fluid, is an acceptable alternative.
ARE REDHEAD GEARBOXES SENT OUT IN CENTER POSITION?
Yes, they are sent out on center.
Manufacturer Warranty*:
1 Year / Unlimited Mileage
1 Year / Unlimited Mileage
Instructions & Tech Info
Installation Info
Customer Average
3 Hours
Recommended Specialty Tool
Reviews For RedHead Steering Gears 2875
Overall Rating
/5
1 Review
Rating Snapshot
0
0
0
1
0
Verified Buyer
13 mos and sloppy
Allan (Moncks corner sc) | March 18th, 2026
Great at first, 1 month out of warranty from date of purchase, and not when received, it now has a 2" play left and right. Should have went OEM but thought this was an upgraded version.
Write a Review
Review this product and help other XDP customers make informed decisions!
Frequently Asked Questions
No questions about this product. Be the first to ask a question!
Ask A Question
Ask a question about this product
Please allow up to 1 business day for reply.
Specifications For RedHead Steering Gears 2875
MPN
2875
SKU
RH2875
ID
105657
Manufacturer Name
RedHead Steering Gears
Shipping Weight
35.00 lb.
Shipping Length
9 in.
Shipping Width
11 in.
Shipping Height
13 in.
Fuel Type
Diesel / Gas
Manufacturer Warranty*
1 Year / Unlimited Mileage
