USD 515.95
Part #: SC1050

Superchips 1050 Dashpaq In-Cab Tuner

1994-2019 Ford Powerstroke Super Duty | 2018-2019 Ford F-150 3.0L Powerstroke
Part #: SC1050
$ $515.95
In-Stock
ADD A 1-YEAR XDP Replacement Guarantee! - *VIEW DETAILS*
SHARE
Our Recommendations Compatible Products
Close
Scroll to View More

Description

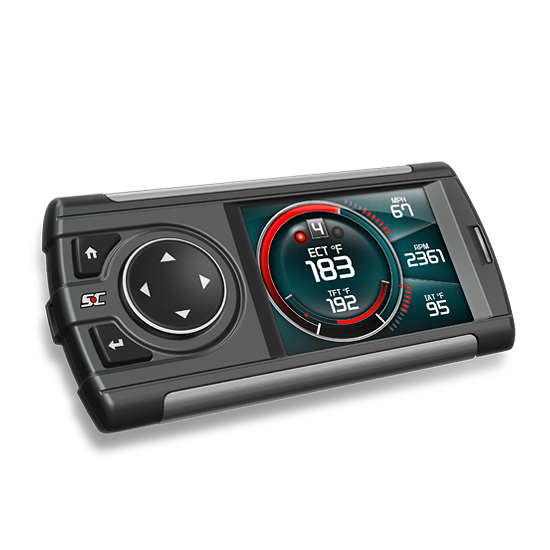

Performance tune your 1994-2019 Ford Powerstroke Super Duty or 2018-2019 Ford F-150 3.0L Powerstroke and monitor vital engine parameters with the Superchips 1050 Dashpaq In-Cab Tuner. This sleek, digital, in-cab display not only serves as a performance tuning device, it also functions as an in-cab monitor giving you more capability than ever before!

The Dashpaq features a full-color, high resolution, button-controlled 2.4" screen. Using the button interface you can navigate between power levels, as well as customize options like tire size, gears (not applicable on all models), and set user-adjustable thresholds for engine parameters like boost, transmission temperature, EGT's and more!

Using the EAS System the Dashpaq allows you to add on additional sensor inputs so you can monitor your engine without skipping a beat. With a wide variety of pressure, temperature and universal sensor inputs, the EAS allows you to expand past the capability of your OBDII system to monitor engine parameters that are important to you.

Features:
  • In-Cab Tuner & Monitor
  • Full-Color, High Resolution 2.4" Screen
  • Read & Clear Diagnostic Trouble Codes
  • Internet Updateable (Windows PC Required)
  • Compatible With (EAS) Expandable Accessory System (Sold Separately)

Max Power Gains:

  • 1994-1997 Ford 7.3L Powerstroke: +80HP & 180 lb-ft
  • 1999-2003 Ford 7.3L Powerstroke: +100HP & 200 lb-ft
  • 2003-2007 Ford 6.0L Powerstroke: +100HP & 200 lb-ft
  • 2008-2010 Ford 6.4L Powerstroke: +100HP & 200 lb-ft
  • 2011-2013 Ford 6.7L Powerstroke: +80HP & 180 lb-ft
  • 2014 Ford 6.7L Powerstroke: +157HP & 180 lb-ft
  • 2015-2016 Ford 6.7L Powerstroke: +106HP & 318 lb-ft
  • 2017-2019 Ford 6.7L Powerstroke: +120HP & 220 lb-ft
  • 2018-2019 Ford F-150 3.0L Powerstroke: +53 HP & 128 lb-ft

Parameters Monitored:

1994-1997 Ford 7.3L Powerstroke: Battery Voltage, Engine Load, Engine Oil Temp, Engine RPM, Exhaust Back Pressure, Gear with TCL, ICP Pressure, Injector Pulse Width, Intake Air Temp, IPR Duty Cycle, Manifold Abs Pressure, Mileage Coach, MPG Instant, MPG Average, Throttle Position, Time 0-60, Time 1/4 mile, Trans Temp, Turbo Boost, Vehicle Speed, Waste Gate Control Duty Cycle

1999-2003 Ford 7.3L Powerstroke: Accel Pedal Position, Battery Voltage, Engine Oil Temp, Engine RPM, Exhaust Back Pressure, Gear with TCL, ICP Pressure, Injector Pulse Width, Intake Air Temp, IPR Duty Cycle, Manifold Abs Pressure, Mileage Coach, MPG Instant, MPG Average, Time 0-60, Time 1/4 mile, Timing, Trans Temp, Turbo Boost, Vehicle Speed, Waste Gate Control Duty Cycle

2003-2007 Ford 6.0L Powerstroke: Tire Size 28"-38", Speedometer Correction, Accel Pedal Position, Barometric Pressure, Battery Voltage, Corrected Speed (03-04), Engine Coolant Temp, Engine Load, Engine Oil Temp, Engine RPM, Engine Run Time, Exh. Backpressure, FICM Voltage, FICM Synchronization, Gear with TCL, ICP Pressure, ICP Voltage, INJ Press Regulator, Injector Pulse Width, Intake Air Temp, Main INJ PWR, Manifold Abs Pressure, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, TCC Duty Cycle, Time 0-60, Time 1/4 mile, Trans Fluid Temp, Turbo Boost, Vehicle Speed (04-07), Variable Geometry Turbo Duty Cycle

2008-2010 Ford 6.4L Powestroke: Tire Size 28"-40", Speedometer Correction, Accel Pedal Position, Barometric Pressure, Battery Voltage, Corrected Speed, EGT, Engine Coolant Temp, Engine Load, Engine Oil Temp, Engine RPM, Engine Run Time, Gear with TCL, Intake Air Temp, Mass Air Flow, Mileage Coach, MPG Instant, MPG Average, Regeneration Status, Time 0-60, Time 1/4 mile, Trans Temp, Turbo Boost

2011-2016 Ford 6.7L Powerstroke: Tire Size 31"-34", Axle Gear Ratio, Speedometer Correction, Ambient Air Temp, Accel Pedal Position, Barometric Pressure, Battery Voltage, Corrected Speed, Dist. Between Regens, Dist. Since DTC Clear, Dist. Since Regen, DPF Pressure, DPF Soot Mass, DTC Count, EGT Post DPF, EGT Pre DPF, EGT Post Turbo, EGT Post SCR/Pre DPF, Engine Coolant Temp, Engine Load, Engine Oil Temp, Engine RPM, Engine Run Time, Fuel Level, Fuel Rate, Gear with Reverse, Gear with TCL, Intake Air Temp, Manifold Abs Pressure, Mileage Coach, MPG Instant, MPG Average, x PPM, Regeneration Status, Reductant (Urea) Level, Time 0-60, Time 1/4 mile, Torque, Torque Solenoid Pressure, Trans Temp, Turbo Boost, Fuel Pressure, Exhaust Back Pressure, EGR Temperature, Fuel Injector Pulse Width, Fuel Injection Timing, Charge Air Temperature

2017-2019 Ford 6.7L Powerstroke: Tire Size 31"-34". Axle Gear Ratio, Speedometer Correction, Adjust Speed Limiter, Adjust Rev Limiter, TPMS Threshold, Data Acquisition, Read and Clear DTC, Ambient Air Temp, Accel Pedal Position, Barometric Pressure, Battery Voltage, Corrected Speed, Dist. Between Regens, Dist. Since DTC Clear, Dist. Since Regen, DPF Pressure, DPF Soot Mass, DTC Count, Manifold EGT Reading,EGT Post DPF, EGT Pre DPF, EGT Post Turbo, EGT Post SCR/Pre DPF, Engine Coolant Temp, Engine Load, Engine Oil Temp, Engine RPM, Engine Run Time, Fuel Level, Fuel Rate, Gear with Reverse, Gear with TCL, Intake Air Temp, Manifold Abs Pressure, Mileage Coach, MPG Instant, MPG Average, x PPM, Regeneration Status, Reductant (Urea) Level, Time 0-60, Time 1/4 mile, Torque, Torque Solenoid Pressure, Trans Temp, Turbo Boost, Fuel Pressure, Exhaust Back Pressure, EGR Temperature, Fuel Injector Pulse Width, Fuel Injection Timing, Charge Air Temperature

2018-2019 Ford F-150 3.0L Powerstroke: Tire Size 28"-40", Azle Gear Ratio, Speedometer Correction, Adjust Speed Limiter, Disable Auto Start/Stop, TPMS Adjustment, Accel Pedal Position, Ambient Air Temp, Ave Regen Distance, Barometric Pressure, Battery Voltage, Charge Air Temperature, Corrected Speed, Cylinder Head Temperature (CHT), Dist. Since DTC Clear, DPF Pressure, DPF Soot Mass, DPF status, DTC Count, EGT2 Post Doc, EGT3 Pre DPF, Engine Load, Engine RPM, Engine Run Time, Exhaust Back Pressure, Fuel Injection Timing, Fuel Level, Fuel Pressure, Fuel Rate, Gear with Reverse, Gear with TCL, Horsepower, Inj Qty In grams, Inj Qty in mm3, Intake Air Temp, Manifold Abs Pressure, Manifold EGT Reading, Mileage Coach, MPG Average, MPG Instant, Post Cooler Pre Doc, Post DPF, Reductant (Urea) Level, Regeneration Status, Time 0-60, Time 1/4 mile, Torque, Torque Solenoid Pressure, Trans Temp, Trip Odometer, Turbo Boost

Specifications

  • MFG. Number 1050
  • Manufacturer Name Superchips
  • Shipping Weight 1.00 lb.
  • Shipping Length 10 in.
  • Shipping Width 7 in.
  • Shipping Height 2 in.
  • Fuel Type Diesel
  • UPC 851672007114
  • Warranty Yes
  • Warranty Info 1 Year
  • Prop 65 WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

Reviews

No Reviews Yet!

Write a Review

Include Your Order Number For a Chance to Win a $100 Gift card

Overall Rating

Your Information

Email Address will not be made public.

Customer Photos

Customer Photos

See what others built Submit your photo

Questions and Answers

Ask XDP a Question about this product (Allow 24-48 hours for reply)

Most Popular Questions

Does this tuner allow for custom tunes to be uploaded?
View Staff Answer
Answer
The Superchips 1050 Dashpaq is not capable of storing custom tunes.
Is this a flash tuner ?
View Staff Answer
Answer
Yes, the Superchips 1050 DashPaq can be considered a flash tuner. The term "Flash Tuner" basically applies to anything that reflashes your factory computer, instead of plugging in-line with the factory wiring harness.
Emissions Notice

This product is not legal for sale or street use in California. Certain aftermarket products are subject to governmental emission standards regulated by the California Air Resources Board. In order for these products to be legal on a specific vehicle in California, the part number must receive a CARB Executive Order (EO) number. This number makes the part legal for use only on specific years, makes and models of vehicles. A decal with CARB EO number for these parts must be displayed in the engine bay to satisfy smog inspection requirements.
