USD 400
Part #: SYN8550-11

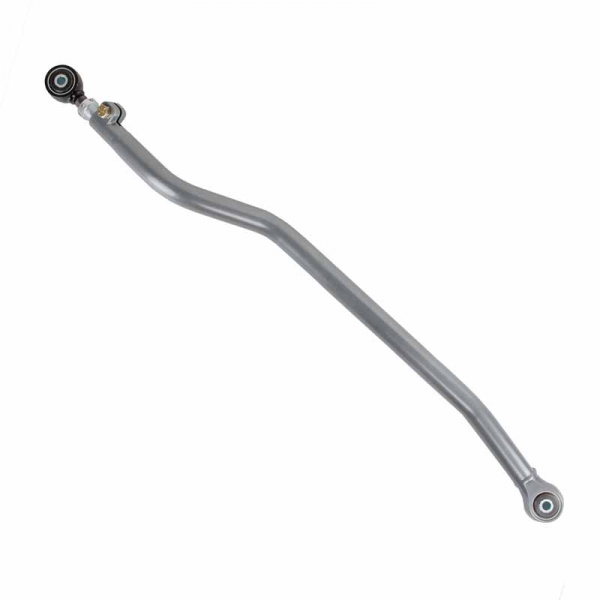

Synergy 8550-11 Adjustable Front Track Bar

Vehicle Fitment:
1994-2013 Dodge Ram 2500/3500 4WD | 2006-2008 Dodge Ram 1500 MegaCab 4WD | See full application list below
Part #: SYN8550-11
$400.00
Buy now, pay later using Affirm Logo during checkout.
Temporarily Out of stock - More on the way!

Estimated ship date: 03/08/2024 (if ordered today)

FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?

Complete the job with these highly suggested add-on products.

Product prices marked with an * may require additonal fees, such as a core charge, which will be displayed in the cart.

SHARE
Our Recommendations Compatible Products
Close
Scroll to View More

Description

The Synergy 8550-11 Adjustable Front Track Bar can help correct the front-end geometry of your 1994-2013 Dodge Ram 1500/2500/3500 4WD. This Adjustable Track Bar is designed to increase the strength between the frame and axle and is fully adjustable to help center the axle underneath your truck. This unit can be adjusted from 38.625" (.25" shorter than stock) to 39.438". This allows the track bar to be used when lowering trucks for truck pull & race applications (up to 3" lower than factory height) and lifted applications up to 6.0" over factory height for off-road use. The bar is bent to clear most aftermarket differential covers and uses maintenance-free Synergy Dual Durometer bushings on both ends.

Features:
  • Increased Strength From Stock
  • Maintenance Free, No Greasing Required
  • No Modifications Required For Installation
  • Adjustable Without Removing From Vehicle
  • No Jam Nuts That Are Impossible To Keep Tight
  • Bent To Clear Most Aftermarket Differential Covers
  • Made From High Quality 1.5" x .250" Wall DOM Tubing
  • Retains Factory Track Bar Mounting Bolts & Hardware
  • Allows Centering Of Front Axle When Running A Suspension Lift
  • Isolates Noise, Vibration, & Harshness (NVH) Increasing Ride Quality
  • Bent To Clear Most Aftermarket Differential Covers With No Additional Lift Height Required
  • Synergy Dual Durometer Bushings Eliminate Binding Issues Associated With Stock Vulcanized Bushings
  • 100% Bolt-On Components Assures An Easy, Trouble-Free Installation With The Use Of Basic Hand Tools
  • Suspension Components Feature An Abrasion-Resistant Powder Coat Finish For Maximum Durability & Corrosion Resistance
  • Synergy Double Adjuster Sleeve & Pinch Bolt Assembly Allows For Adjustment Of Track Bar Length Without Removing Control Arm Mounting Bolt
  • Features Synergy Dual Durometer Bushings (DDB) With Non-Stick Bearing Surface For A Maintenance Free Design Focusing On Performance, Flex, Longevity, & Ride Quality
Min/Max Length:
Measured in straight line from center of bolt hole to center of bolt hole
Min collapsed length: 38.625"
Max extended length: 39.438"

Includes:
(1) Grade 8 Hardware Kit
(1) Synergy Dodge Front Track Bar
(1) Synergy Double Adjuster Sleeve

Note:
2006-2008 Dodge Ram 1500 Megacab 4WD
1994-2002 Dodge Ram 1500/2500/3500 models need to purchase the Synergy Part 8554-02 (See Related Items)
The 2013 Dodge Ram 3500 was a split year for production. If your truck has radius arms use part number 8704-01. (See Related Items)

Vehicle Fitment

YEAR MAKE FOR ENGINE SERIES
1994 Dodge 5.9L 12V Cummins
1995 Dodge 5.9L 12V Cummins
1996 Dodge 5.9L 12V Cummins
1997 Dodge 5.9L 12V Cummins
1998 Dodge 5.9L 12V Cummins
1998.5 Dodge 5.9L 24V Cummins
1999 Dodge 5.9L 24V Cummins
2000 Dodge 5.9L 24V Cummins
2001 Dodge 5.9L 24V Cummins
2002 Dodge 5.9L 24V Cummins
2003 Dodge 5.9L 24V Cummins
2004 Dodge 5.9L 24V Cummins
2004.5 Dodge 5.9L 24V Cummins
2005 Dodge 5.9L 24V Cummins
2006 Dodge 5.9L 24V Cummins
2007 Dodge 5.9L 24V Cummins
2007.5 Dodge 6.7L 24V Cummins
2008 Dodge 6.7L 24V Cummins
2009 Dodge 6.7L 24V Cummins
2010 Ram 6.7L 24V Cummins
2010 Dodge 6.7L 24V Cummins
2011 Ram 6.7L 24V Cummins
2011 Dodge 6.7L 24V Cummins
2012 Ram 6.7L 24V Cummins
2012 Dodge 6.7L 24V Cummins
2013 Ram 6.7L 24V Cummins
2013 Dodge 6.7L 24V Cummins
1994 Dodge Gas
1995 Dodge Gas
1996 Dodge Gas
1997 Dodge Gas
1998 Dodge Gas
1998.5 Dodge Gas
1999 Dodge Gas
2000 Dodge Gas
2001 Dodge Gas
2002 Dodge Gas
2003 Dodge Gas
2004 Dodge Gas
2004.5 Dodge Gas
2005 Dodge Gas
2006 Dodge Gas
2007 Dodge Gas
2007.5 Dodge Gas
2008 Dodge Gas
2009 Dodge Gas
2010 Ram Gas
2010 Dodge Gas
2011 Ram Gas
2011 Dodge Gas
2012 Ram Gas
2012 Dodge Gas
2013 Ram Gas
2013 Dodge Gas

Specifications

  • MFG. Number 8550-11
  • Manufacturer Name Synergy
  • Shipping Weight 18.00 lb.
  • Shipping Length 41 in.
  • Shipping Width 5 in.
  • Shipping Height 5 in.
  • Fuel Type Diesel / Gas
  • E-Code 1
  • UPC 887753145659
  • Warranty Info Limited Lifetime
  • Prop 65 Prop 65 WarningWARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
  • Internal L0.00R0.00
