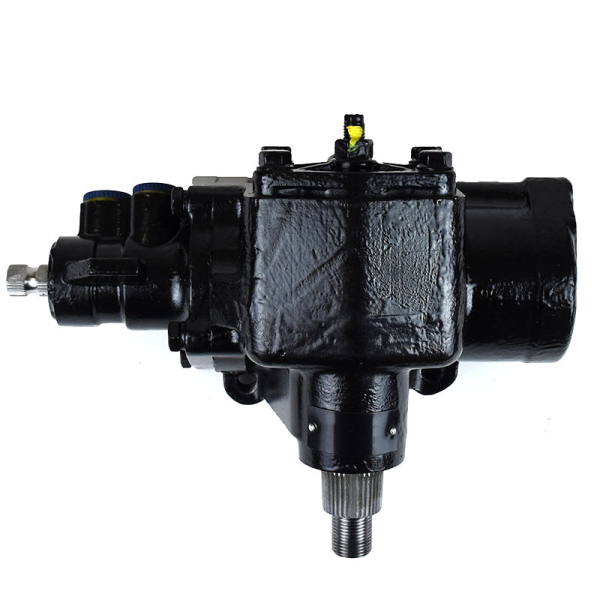

XDP Stock+ Power Steering Gearbox (New) XD750
PART#
XD750 | SKU XD750
★★★★★
Vehicle Fitment For:
2003-2008 Dodge Ram 2500/3500 4WD
See full application list below
NOTES: This steering gear has the 4-bolt top cover.
$730.95
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Description
Upgrade the worn steering gear in your Dodge Ram 2500/3500 with the XDP Stock+ Power Steering Gearbox (New) XD750. The most common cause of a failing steering gearbox (also known as a
steering gear or steering box) is long-term wear and tear. Over time,
internal components such as the worm gear, sector gear, and bearings can
wear down or get damaged. Other contributing factors may include rough
road conditions, potholes, and fluid leaks.
Specifications:
Input Shaft Diameter: 0.73
Output Shaft Diameter: 1.31
Power Assisted: Yes
Pressure Port Thread Size: 18-1.5MM
Return Port Thread Size: 20-1.5MM
Total Turns Lock To Lock: 3.0-3.3
Symptoms
of a worn steering gearbox include a leaking sector shaft seal,
excessive play in the steering wheel (loose or unresponsive steering),
or the vehicle wandering or pulling while driving. Other signs to watch
for are difficulty turning, leaking fluid, a stiff steering wheel, and
grinding or clunking noises coming from the steering system. As the
condition worsens, you may also notice that more effort is required to
steer, especially at lower speeds or when maneuvering.
New, Not Remanufactured
Built with 100% new components, the XDP Stock+ Power Steering Gearbox is designed to provide you with a long and dependable service life. Each unit features a bolt-on design and is designed to work with the factory pitman arm and steering shaft.
Built with 100% new components, the XDP Stock+ Power Steering Gearbox is designed to provide you with a long and dependable service life. Each unit features a bolt-on design and is designed to work with the factory pitman arm and steering shaft.
Features:
- Brand New
- No Core Charge
- Direct-Fit Replacement
- Works With Factory Pitman Arm & Steering Shaft
- Every Component Is 100% Completely New, Not Remanufactured
Specifications:
Input Shaft Diameter: 0.73
Output Shaft Diameter: 1.31
Power Assisted: Yes
Pressure Port Thread Size: 18-1.5MM
Return Port Thread Size: 20-1.5MM
Total Turns Lock To Lock: 3.0-3.3
Manufacturer Warranty*:
2 Year / Unlimited Mileage
2 Year / Unlimited Mileage
Note:
This steering gear has the 4-bolt top cover.
This steering gear has the 4-bolt top cover.
Instructions & Tech Info
Reviews For XDP XD750
Overall Rating
/5
1 Review
Rating Snapshot
0
0
0
0
1
Verified Buyer
Avoid this steering box!
Kp (Saint Jo Tx) | December 3rd, 2025
I’ve installed countless gear boxes from literally every manufacturer. They all are terrible and some are less terrible. I chose this XDP brand box as it was a new brand I’ve never tried. I bought two of these and they both failed me not even two month in use. One box lasted two months and the other was awful out the gate. Super sloppy, 4”-5” of slop turning left and right. Very dangerous. Avoid this style box! With that said, the upgraded XDP brand 6 bolt box for the newer models actually work great. I’ve installed 3 of the 6 bolt XDP non adaptive steering boxes and so far I’ve had great luck. You have to upgrade the steering shaft & pitman arm to make that box fit on an older model. A new pump is a must as well.
Note From Store Owner: Thank you for reaching out and letting us know about your experience. We’re sorry to hear that the product did not meet your expectations, and we completely understand your frustration. To ensure we address this properly, we’ve escalated your concern to our technical department. One of our specialists will be contacting you to review the issue in detail and work toward the best possible solution. If there is anything else we can assist with, please don’t hesitate to reach out to our Customer Service Team using the help desk feature on our website.
Write a Review
Review this product and help other XDP customers make informed decisions!
Frequently Asked Questions
No questions about this product. Be the first to ask a question!
Ask A Question
Ask a question about this product
Please allow up to 1 business day for reply.
Specifications For XDP XD750
MPN
XD750
SKU
XD750
ID
152165
Manufacturer Name
XDP
Shipping Weight
36.00 lb.
Shipping Length
16 in.
Shipping Width
11 in.
Shipping Height
8 in.
Fuel Type
Diesel / Gas
E-Code
1
Manufacturer Warranty*
2 Year / Unlimited Mileage
Prop 65
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
Cross Reference #
11605, 1605, 25172, 27-7616, 3006, 36-G0085, 47616, 502-0137, 61-5073, 97-7616GB, 98146M, N502-0137, 52106835AC, 52106835AE, 52106835AF, 52106835AG, 52121986AA, 52121986AC, 52121986AE, 52121986AF, 52121986AG
