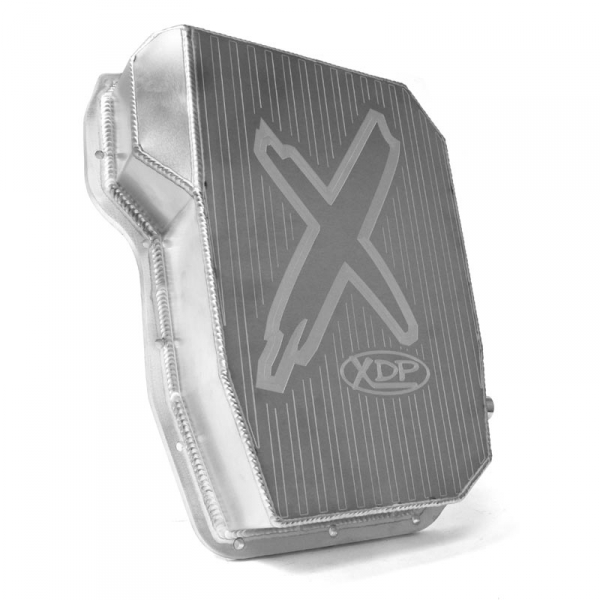

XDP Xtra Deep Aluminum Transmission Pan (68RFE) XD452

PART# XD452 | SKU XD452

Vehicle Fitment:
2007.5-2022 Dodge Ram 6.7L Diesel (Equipped With 68RFE) | See full application list below
Buy now, pay later using Affirm Logo during checkout.
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Our Recommendations Compatible Products
Scroll to View More


Add 2 quarts of extra fluid capacity and a custom look to the 68RFE transmission in your Ram with the XDP Xtra Deep Aluminum Transmission Pan (68RFE) XD452. The XDP Xtra Deep Transmission Pan is built with an aluminum sheet metal construction to give you a race-inspired look that is sleek, lightweight, and durable.

Each pan features a fully-welded construction and a 3/8" thick mounting flange for added strength and resistance to warping. The CNC engraved bottom provides you with enhanced looks and styling while the direct-fit design allows this pan to easily install using any OE-style gasket. As an upgrade over the factory pan, the Xtra Deep Pan is equipped with a drain plug and an 1/8" NPT port access to install a transmission temperature sender. This pan comes ready to install with new stainless steel hardware and is backed by the XDP 1-year unlimited mileage warranty.

  • 1/8" NPT Temperature Port
  • Deep Sump For Added Capacity
  • Fabricated Aluminum Construction
  • 2 Quarts Added Capacity Over Stock
  • Includes Stainless Steel Mounting Hardware
Application Notes:
Does not include a gasket or filter.
Fits 2007.5-2022 Ram Trucks with 6.7L Diesel equipped with 68RFE Transmission
In most cases the factory transmission pan was sealed with RTV Silicone and can be reinstalled the same way (not included).
The XDP 68RFE Billet Filter Clamp XD478 is required on applications running a stock valve body with a deep transmission pan. (See Related Items)


  • MPN XD452
  • SKU XD452
  • ID 108501
  • Manufacturer Name XDP
  • Shipping Weight 8.00 lb.
  • Shipping Length 19 in.
  • Shipping Width 15 in.
  • Shipping Height 7 in.
  • Fuel Type Diesel
  • Warranty Info 2 Year / Unlimited Mileage
  • Prop 65 Prop 65 WarningWARNING: Cancer & Reproductive Harm -
  • Internal L0R9
