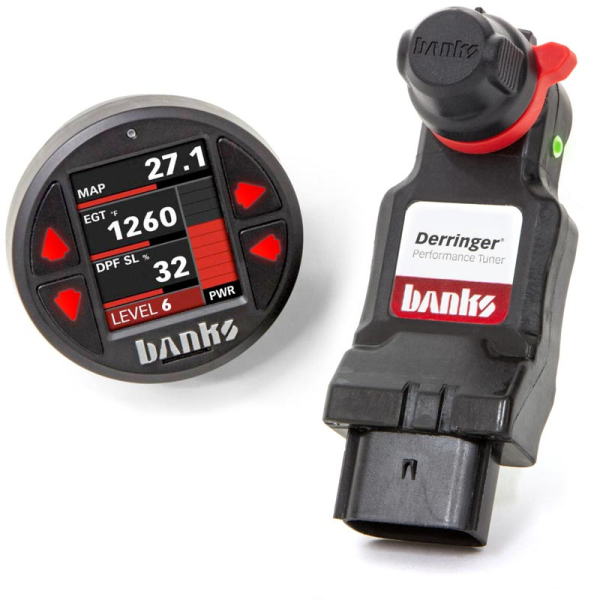

Banks Power 66681 Derringer Tuner With iDash 1.8 SuperGauge
PART#
66681 | SKU BP66681
Vehicle Fitment For:
2014-2018 Ram 1500 3.0L EcoDiesel | 2014-2018 Jeep Grand Cherokee 3.0L EcoDiesel
See full application list below
NOTES: When running multiple iDash together, purchase 1 Primary and 2-3 Expansion gauges. Does not include mount for iDash.
$769.00
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Description
Add Up To 40 HP & 63 LB-FT Torque
The Banks Power 66681 Derringer Tuner With iDash 1.8 SuperGauge from XDP is an easy way to add up to 40 horsepower and 63 lb-ft of torque your 2014-2018 Ram 1500 or 2014-2018 Jeep Grand Cherokee 3.0 EcoDiesel. This tuner is calibrated on the dyno and utilizes inputs like throttle position, RPM, vehicle speed, and engine temperature. These inputs are optimized by the microprocessor-based electronics to safely add horsepower and torque while improving mileage when driven with a light foot.
The Banks 66681 Power Derringer Tuner With iDash 1.8 SuperGauge has 6 different power levels to choose from and can add up to 40 HP and 63 Lb-Ft. The Level 3 setting is best used for work use and offers an excellent mid-range feel when hauling or merging onto an on-ramp. The electronics feature waterproof connectors and the Derringer also connects to the vehicle's OBDII diagnostic bus connector with the iDash 1.8 SuperGauge. The SuperGauge monitors the health of Derringer 100 times a second to ensure safe operation. If any anomaly is detected, the Derringer instantly bypasses itself returning you to stock power and sets a device diagnostic code.
Power Levels
- 2014-2018 Ram 1500 3.0 EcoDiesel +40HP & 63 Lb-Ft
- 2014-2018 Jeep Grand Cherokee 3.0 EcoDiesel +40HP & 63 Lb-Ft
Features:
- Adds Up To 40 HP & 63 Lb-Ft
- 0-100 Mph 4 Seconds Faster
- Works While In Cruise-Control
- TransCommand Protects Transmission
- ActiveSafety Protects Engine/Powertrain
- iDash Logs Up To 100 Parameters At 20hz
- Autorate Tunes In Realtime Using Vehicle Diagnostics
- Real-Time Bar Graph Displays Derringer's Added Power
- iDash Displays 5 Customizable Pages Of 2-8 Gauges Per Page
- iDash Logs Up To 20 Min/Max Values With Customizable Alerts
- Warranty Friendly: No Reflash Required And No Traces Left In ECM
- iDash Displays DPF Regen Status, Distance Between Regens, Def Level
- Simple Plug-And-Play Installation With Easy Removal For Dealer Service
- iDash Displays User-Selectable Alerts, Examples: Speed, Coolant Temp, Trans Slip
- iDash Displays Dozens Of Temps, Pressures, Speeds, And Info Your Dashboard Doesn't
- 6 Power Levels That Can Be Changed On-The-Fly Via iDash. Each Level Adds Approx 8 HP
- Data Logs Can Be Viewed Right On The iDash Or Transferred To A Computer For Analysis
- Interfaces With OBD-II Port (On-Board Diagnostics) To Communicate With Vehicle's ECM
AutoRate Dynamic Tuning
Unlike the fixed tuning used by others, the Derringer calibration is continuously adjusting to provide you the peak possible performance under every driving condition. By utilizing the power of the OBD-II data, the tuner intelligently fine-tunes its calibration on the fly without you having to change its power level.
- Exhaust Gas Temperature (EGT) – The Derringer senses your engine’s EGT and intelligently modulates fueling to maintain a safe maximum EGT, protecting your turbo and engine.
- Altitude compensation – The Derringer senses ambient air pressure, controlling the turbocharger to maintain added boost and power as altitude increases.
- Diesel Particulate Filter (DPF) Regen – The Derringer tuner constantly monitors your DPF regen status and will optimize its calibration to ensure the DPF regen process completes successfully.
- Accelerator Pedal Monitoring – The Derringer senses accelerator pedal position to roll in additional power progressively, optimizing part-throttle fuel economy and giving max power when you ask for it.
- Coolant Temperature Monitoring – The Derringer senses coolant temp to control added power. During warmup, no power is added below 120° F, then power is ramped in and fully available above 150° If the coolant overheats for any reason, the Derringer starts removing its power at 230° F, and additional power is totally removed if you exceed 240° F.
- Full Power Timer – The Derringer allows for 30 seconds of wide-open throttle before transitioning to the recommended power level for sustained tow/haul. (Our research has shown that your ECM when at full power will hit 1450° EGT and after a minute or so will pull out fuel to cool things down. So, we do the same thing.)
TransCommand Active Transmission Safety System
In addition to AutoRate Adaptive Tuning, the Derringer utilizes key engine and transmission parameters to enhance shift performance and improve the longevity of your transmission. Because the competitors lack the essential OBD-II data, they always add power at wide-open throttle—no matter what! This can cause excessive transmission slip, torque converter clutch slip, and even 100+ HP engine de-rates in order for the transmission to complete the shift. This harms the overall performance and degrades your transmission. The Derringer is meticulously calibrated and extensively tested to properly modulate power during shifting, optimizing performance and safety.
- Intelligent Shift Tuning – The transmission shift request signal is monitored to optimize the power level prior to the shift protecting the transmission, increasing shift speed, and avoiding ECM power derates.
- Boost and Fuel by Gear – Gear based calibration allows for optimum traction and performance
- Torque Converter Clutch Slip Monitoring – The Derringer adjusts to modulate TCC slip to safe levels.
- Transmission Slip Monitoring – The Derringer adjusts calibration to modulate transmission slip to safe levels
ActiveSafety Health Monitoring
The Derringer is the only tuner on the market to include ‘Active Safety’ health monitoring circuitry. This active failsafe system utilizes bypass relays to smoothly transition your vehicle to stock power levels in the event of any trouble signs in the Derringer. The system constantly monitors various parameters over 250 times a second to ensure that everything is operating as it should. If any competitive tuners lose power or fail in any way, they will instantly trigger a “limp home” mode where all power is lost and the vehicle dangerously slows to a crawl. If the same fault condition occurs to the Derringer it will gracefully remove its additional power and return to stock power levels without a hitch.
- Health Monitoring: Internal self-diagnostics checks the health of the system 250 times per second
- Monitors MAP and FRP signals for out of range condition (disconnected or short circuit)
- Active safety engages if 12-volt power is lost to the Derringer tuner
Additional Features
- Simple plug and play installation
- Warranty friendly: no reflash required and no traces left in ECM
- Enclosed in a compact housing which is easily concealed
- LED Derringer status indicator
Additional Features with iDash DataMonster or SuperGauge
- 6 power levels with on-the-fly, controlled by iDash
- Derringer screen for viewing added power in real-time
- Regen status displayed over power level when Regen is active
- Datalog up to 100 Derringer, engine, or transmission parameters to microSD card
- Update Derringer software and calibration through iDash
- Expand the system with other Banks Bus products
- AirMouse® Ambient Air Density Module
- 4-CH Analog Sensor Module*
- 4-CH Thermocouple Module*
Shipping Restrictions Apply
This product can not be shipped to these states/provinces: CA
This product can not be shipped to these states/provinces: CA
Note:
When running multiple iDash together, purchase 1 Primary and 2-3 Expansion gauges.
Does not include mount for iDash.
When running multiple iDash together, purchase 1 Primary and 2-3 Expansion gauges.
Does not include mount for iDash.
Instructions & Tech Info
Installation Info
Reviews For Banks Power 66681
No Reviews Yet!
Write a Review
Review this product and help other XDP customers make informed decisions!
Frequently Asked Questions
No questions about this product. Be the first to ask a question!
Ask A Question
Ask a question about this product
Please allow up to 1 business day for reply.
Specifications For Banks Power 66681
MPN
66681
SKU
BP66681
GTIN
801279666818
ID
80996
Manufacturer Name
Banks Power
Shipping Weight
3.00 lb.
Shipping Length
10 in.
Shipping Width
6 in.
Shipping Height
6 in.
Fuel Type
Diesel
E-Code
3
EO Number
D-161-129 & D-161-148
