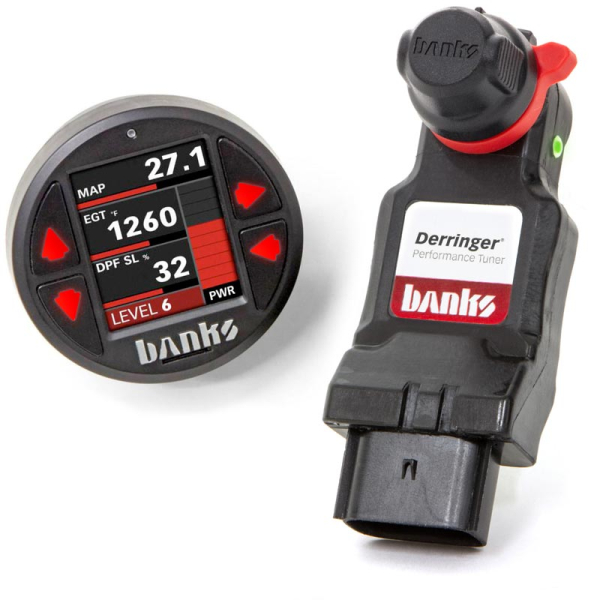

Banks Power 66692 Derringer Tuner (Gen2) With iDash 1.8
PART#
66692 | SKU BP66692
★★★★★
Vehicle Fitment For:
2017-2019 GM 6.6L Duramax L5P
See full application list below
NOTES: When running multiple iDash together, purchase 1 Primary and 2-3 Expansion gauges. Does not include mount for iDash.
$769.00
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Description
Add Up To 61 HP & 112 LB-FT Torque
Add up to 61 horsepower and 112 lb-ft of torque to your 2017-2019 GM 6.6L Duramax L5P with the Banks Power 66692 Derringer Tuner (Gen2) With iDash 1.8 from XDP. This value-priced, feature-packed tuner gives you torque and power gains across the full RPM range. Starting off at idle, and marching to the shift point in each gear. Designed to use multiple data inputs such as throttle position, RPM, vehicle speed, AFR, knock, and coolant temp just like your engine's ECU. It's microprocessor-based electronics are able to actively and safely optimize calibrations in real-time, unlike other products on the market.
The Derringer with iDash has 6 switched settings. Level 6 produces best-in-class performance that knocks you back in your set. The Plus setting is for work use and has great mid-range feel. When running Plus with a loaded work truck and/or pulling a trailer, your on-ramp merging speeds and passing times are greatly improved. The Derringer is the only tuner that actually utilizes your truck’s ECU to make intelligent calculations.
The electronics are molded into a waterproof connector, which is easily concealed and communicates using B-Bus (Banks Bus) with other devices such as the iDash 1.8 Super Gauge/Control Center. The Derringer connects in line with the Throttle Inlet Pressure (TIP) and Manifold Absolute Pressure (MAP) sensors. But, unlike others it also connects to the vehicle's OBDII diagnostic bus connector. A CAN (controller area network) transceiver chip communicates with OBD or B-Bus allowing our microprocessors to talk with the vehicle. And, Derringer's special coolant temp watchdog prevents power addition when the engine is too cold or overheated. The Derringer also auto-adjusts power if knock occurs due to bad fuel. Maximum safe power is all automatic with a Derringer, you just choose your setting.
Features:
- Adds Up To 61 Hp & 112 Lb-Ft
- Works While In Cruise-Control
- TransCommand Protects Transmission
- ActiveSafety Protects Engine/Powertrain
- AutoRate Tunes In Realtime Using Vehicle Diagnostics
- Real-Time Bar Graph On iDash Displays Derringer's Added Power
- Warranty Friendly: No Reflash Required And No Traces Left In ECM
- The Derringer Utilizes Your Truck’s ECM To Make Intelligent Calculations
- Simple Plug-And-Play Installation With Easy Removal For Dealer Service
- Interfaces With OBD-II Port (On-Board Diagnostics) To Communicate With Vehicle's ECM
- 6 Power Levels That Can Be Changed On-The-Fly Via iDash. Each Level Adds Approx 12 Hp
AutoRate Dynamic Tuning
• Exhaust Gas Temperature (EGT) — Monitors EGT and intelligently modulates fueling to maintain a safe maximum EGT, protecting your turbo and engine.• Altitude compensation — Senses ambient air pressure, controlling the turbocharger to maintain added boost and power as altitude increases.
• Diesel Particulate Filter (DPF) Regen — Monitors your DPF Regen status to ensure the process completes successfully.
• Accelerator Pedal Monitoring — Rolls in additional power progressively, optimizing for both part-throttle fuel economy and max power when you ask for it.
• Full Power Timer — Allows for 30 seconds of wide-open throttle before transitioning to the recommended power level for sustained tow/haul.
• Coolant Temperature Monitoring — Maintains safe power based on coolant temp.
• During warmup, no power is added below 120° F
• Power ramps in & fully available above 150° F
• If the coolant overheats for any reason, the Derringer starts removing its power at 230° F
• Additional power is totally removed if you exceed 240° F
TransCommand Active Transmission Safety System
The
Derringer is calibrated to modulate power during shifting while ramping
up hydraulic pressure for better engagement. Competitors lack OBD-II
data and always add power at wide-open throttle causing excessive
transmission, clutch, and torque converter slip and damage.
• Boost and Fuel by Gear — Monitors your DPF Regen status to ensure the process completes successfully.
• Accelerator Pedal Monitoring — Rolls in additional power progressively, optimizing for both part-throttle fuel economy and max power when you ask for it.
• Tuned Hydraulic Pressure — Allows for 30 seconds of wide-open throttle before transitioning to the recommended power level for sustained tow/haul.
• Torque Converter Clutch (TCC) Monitoring — Maintains safe power based on coolant temp.
• Shift signal is optimized for the power level protecting the transmission, increasing shift speed, and avoiding ECM power derates.
• Calibration is tuned for optimum traction and performance providing the right firmness of shift automatically.
• Ramps hydraulic pressure faster than stock, maintaining engagement as power is added safely within factory limits.
• Adjusts TCC slip to safe levels, lowering fluid temperature, and preventing extended wear.
• Transmission Slip Monitoring - Light throttle shifts remain smooth and firm, full-throttle shifts are solid and decisive.
This reduction in slip time also improves acceleration performance, an added benefit!
ActiveSafety Health Monitoring
The Derringer is the only tuner available that includes Active Safety health monitoring circuitry.
• Checks MAP and FRP signals and monitors CPU activity
• Activates in event of failure or loss of 12V power. Bypass relays smoothly return stock power with no loss of power or "Limp Home" Mode.
Manufacturer Warranty*:
1 Year Limited
1 Year Limited
Note:
When running multiple iDash together, purchase 1 Primary and 2-3 Expansion gauges.
Does not include mount for iDash.
When running multiple iDash together, purchase 1 Primary and 2-3 Expansion gauges.
Does not include mount for iDash.
