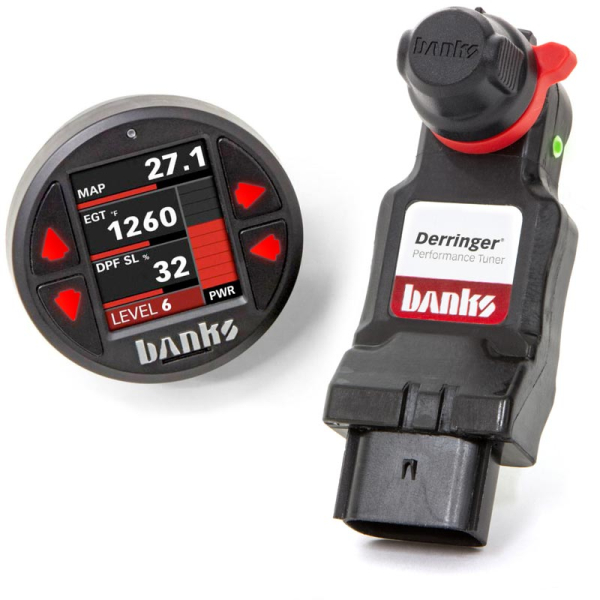

Banks Power 66693 Derringer Tuner (GEN2) With iDash 1.8
PART#
66693 | SKU BP66693
★★★★★
Vehicle Fitment For:
2011-2019 Ford 6.7L Powerstroke
See full application list below
NOTES: When running multiple iDash together, purchase 1 Primary and 2-3 Expansion gauges. Does not include mount for iDash.
$769.00
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Description
Add Up To 72 HP & 148 LB-FT Torque
The Banks Power 66693 Derringer Tuner (GEN2) With iDash 1.8 from XDP lets you easily add up to 72 horsepower and 148 lb-ft of torque to your 2011-2019 Ford 6.7 Powerstroke. The included iDash 1.8 not only gives you the ability to switch gives you the ability to change tunes on-the-fly, it also provides you with a digital gauge. The AutoRate and ActiveSafety features let you put power to the ground without damaging your engine or powertrain. The Derringer Tuner is dyno-calibrated with multiple inputs like throttle position, speed, AFR, coolant temp, and more just like your factory ECU. The microprocessor-based electronics in the Derringer actively and safely optimize calibrations in real time, unlike other products on the market.
The Derringer with iDash 1.8 comes with six switched settings: Level 3 is great for work such as hauling, or driving in a loaded work truck, while Level 6 gives you best-in-class performance and puts you back in your seat. The electronics of the Derringer are in a compact housing that is easily concealed. The Derringer connects in-line with your existing sensors as well as the OBDII port so the microprocessor can communicate with your truck as well as provide safety features like cold engine protection. The power is all automatic, all you need to do is choose your setting and let the Derringer do the rest.
Power Levels
- 2011-2014 Ford F250/F350/F450/F550 +72HP & 148 Lb-Ft
- 2015-2016 Ford F250/F350/F450/F550 +61HP & 120 Lb-Ft
- 2017-2019 Ford F250/F350/F450/F550 +59HP & 106 Lb-Ft
Features:
- Adds Up To 72 HP & 148 Lb-Ft
- Works While In Cruise-Control
- TransCommand Protects Transmission
- DPF Regen Status, DEF Level, Displayed
- ActiveSafety Protects Engine/Powertrain
- AutoRate Tunes In Realtime Using Vehicle Diagnostics
- Real-Time Bar Graph Displays Derringer's Added Power
- 6 Power Levels Can Be Changed On-The-Fly Through The iDash
- Experience Huge Torque And Horsepower Gains For Tow And Fun
- Interfaces With OBD-II Port To Communicate With The Vehicle
- Warranty Safe: No Reflash Required And No Traces Left In ECM
- DPF Mobile And Stationary Regen Commanded Via iDash (2017-19)
- With iDash Displays 5 Customizable Pages Of 2-8 Gauges Per Page
- Simple Plug-And-Play Install With Easy Removal For Dealer Service
- iDash Displays Temps, Pressures, Speeds, And Info Your Dashboard Doesn't
A Tuner Above The Rest
The Derringer is dyno-calibrated to use multiple data inputs such as throttle position, rpm, vehicle speed, AFP, knock, coolant temperature, and EGT, just like your engine's ECM. It actively and safely optimizes calibrations in real-time thanks to its OBD-II connectivity while providing huge performance gains. All while keeping your factory ECM happy, temperatures under control, and transmission safe. No competitive tuner does that.Choose Your Power
Derringer
has 6 levels, adjustable on-the-fly using the iDash. Level 6 produces
best-in-class performance. Level 3 is designed for work use and has a
great mid-range feel. When running Level 3 with a loaded truck and/or
pulling a trailer, your on-ramp merging speeds and passing times are
greatly improved.
Tuned Safe
ActiveSafety
health monitoring circuitry keeps an eye on the vehicle and the module
itself. It checks its health 250 times a second. If it detects an issue,
Derringer instantly bypasses itself, sets a device diagnostic code, and
seamlessly returns the truck to stock power. Plus, Derringer's special
coolant temp monitoring prevents power addition when the engine is too
cold or overheated. The Derringer also auto-adjusts power if knock
occurs due to bad fuel. Maximum safe power is all automatic with
Derringer - just choose your preferred power level and enjoy the ride.
AutoRate Dynamic Tuning
The
Derringer calibration is continuously adjusting to provide peak
performance under every driving condition. By utilizing the power of the
OBD-II data, the tuner intelligently fine-tunes its calibration on the
fly without you having to change its power level.
- Exhaust Gas Temperature (EGT) - Monitors EGT and intelligently modulates fueling to maintain a safe maximum EGT, protecting your turbo and engine.
- Altitude compensation - Senses ambient air pressure, controlling the turbocharger to maintain added boost and power as altitude increases.
- Diesel Particulate Filter (DPF) Regen - Monitors your DPF regen status to ensure the process completes successfully.
- Accelerator Pedal Monitoring – Rolls in additional power progressively, optimizing for both part-throttle fuel economy and max power when you ask for it.
- Full Power Timer - Allows for 30 seconds of wide-open throttle before transitioning to the recommended power level for sustained tow/haul.
- Coolant Temperature Monitoring - Maintains safe power based on coolant temp.
- During warmup, no power is added below 120° F
- Power is ramped in and fully available above 150° F
- If the coolant overheats for any reason, the Derringer starts removing its power at 230° F
- Additional power is totally removed if you exceed 240° F
TransCommand Active Transmission Safety System
The
Derringer is calibrated to modulate power during shifting while ramping
up hydraulic pressure for better engagement. Competitors lack OBD-II
data and always add power at wide-open throttle causing excessive
transmission, clutch, and torque converter slip.
- Intelligent Shift Tuning - Shift signal is optimized for the power level protecting the transmission, increasing shift speed, and avoiding ECM power derates.
- Boost and Fuel by Gear - Calibration is tuned for optimum traction and performance providing the right firmness of shift automatically.
- Tuned Hydraulic Pressure - Ramps hydraulic pressure faster than stock, maintaining engagement as power is added safely within factory limits.
- Torque Converter Clutch (TCC) Monitoring - Adjusts TCC slip to safe levels, lowering fluid temperature, and preventing extended wear.
- Transmission Slip Monitoring - Light throttle shifts remain smooth and firm, full-throttle shifts are solid and decisive.
- This reduction in slip time also improves acceleration performance, an added benefit!
ActiveSafety Health Monitoring
The Derringer is the only tuner available that includes Active Safety health monitoring circuitry.
- Internal diagnostics check system 250 times per second
- Checks MAP and FRP signals and monitors CPU activity
- Activates in event of failure or loss of 12V power
- Bypass relays smoothly return stock power with no loss of power or "Limp Home" Mode.
Shipping Restrictions Apply
This product can not be shipped to these states/provinces: CA
This product can not be shipped to these states/provinces: CA
Note:
When running multiple iDash together, purchase 1 Primary and 2-3 Expansion gauges.
Does not include mount for iDash.
When running multiple iDash together, purchase 1 Primary and 2-3 Expansion gauges.
Does not include mount for iDash.
Instructions & Tech Info
Installation Info
Reviews For Banks Power 66693
Overall Rating
/5
1 Review
Rating Snapshot
1
0
0
0
0
Great company Great products
Bill S (Windsor Locks) | November 13th, 2020
The Banks Tuner definitely makes a difference on my truck. The folks over at xdp are awesome product was shipped quick and recieved in perfect condition. Definitely gonna be ordering from them again!
Write a Review
Review this product and help other XDP customers make informed decisions!
Frequently Asked Questions
Is this available/usable in the 16’ F 550 cab/chasis
Yes, the Banks Power 66693 Derringer Tuner (Gen2) With iDash 1.8 is compatible with F250/350/450/550 models.
Ask A Question
Ask a question about this product
Please allow up to 1 business day for reply.
Specifications For Banks Power 66693
MPN
66693
SKU
BP66693
GTIN
801279666931
ID
60037
Manufacturer Name
Banks Power
Shipping Weight
3.00 lb.
Shipping Length
10 in.
Shipping Width
6 in.
Shipping Height
6 in.
Fuel Type
Diesel
E-Code
3
EO Number
d-161-127
