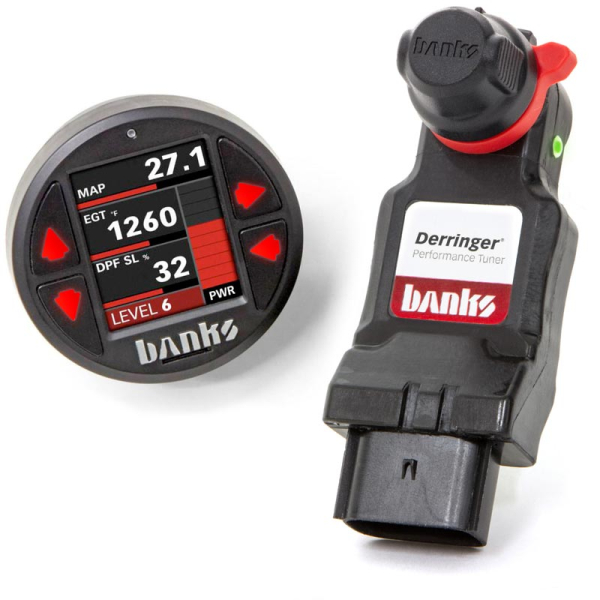

Banks Power 66798 Derringer Tuner With iDash SuperGauge
PART#
66798 | SKU BP66798
★★★★★
Vehicle Fitment For:
2020-2023 Ram 1500 3.0L EcoDiesel | 2020-2023 Jeep Wrangler JL 3.0L EcoDiesel | 2021-2023 Jeep Gladiator JT 3.0L EcoDiesel
See full application list below
NOTES: When running multiple iDash together, purchase 1 Primary and 2-3 Expansion gauges. Does not include mount for iDash.
$769.00
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Description
Add Up To 57 HP & 73 LB-FT Torque
The Banks Power 66798 Derringer Tuner With iDash SuperGauge from XDP is an easy way to add 57 horsepower and 73 lb-ft of torque to your 3.0L EcoDiesel Ram 1500, Jeep Gladiator JT, or Jeep Wrangler JL and lets you monitor the engine and transmission. The Derringer Tuner offers greater torque and power gains across the entire RPM range, starting from idle all the way to the shift points. This module is dyno tuned to use data inputs such asvehicle speed, AFR, RPM, EGT, throttle position, and coolant temperature just like ECM your truck uses. The Derringer constantly optimizes the tunes in real-time due to its OBD-II connectivity, unlike other manufacturers.
The Derringer module contains 6 power levels that can be changed on-the-fly using the SuperGauge to offer best-in-class performance. Level 3 is engineered for work, such as towing a fully loaded trailer to improve passing times or on-ramp merging speeds.The Derringer in tandem with other Banks products such as the PedalMonster throttle booster to enhance the throttle response even further. This module plugs into the vehicle's OBD-II diagnostic port and is installed in line with your truck's engine sensors.
The ActiveSafety feature monitors the health of the Derringer circuitry and safeguards the engine and transmission. By analyzing the wellbeing of the module 100 times per second, the Derringer can instantaneously bypass if an issue presents itself. Once a problem is discovered, the Derringer returns the truck back to factory power and sets a device diagnostic code. Power is prevented from being added when the engine is overheated or too cold via the coolant temperature monitoring.
Power Levels
- 2020-2023 Ram 1500 +57HP & 73 Lb-Ft
- 2020-2023 Jeep Wrangler JL +57HP & 73 Lb-Ft
- 2021-2023 Jeep Gladiator JT +57HP & 73 Lb-Ft
Features:
- Adds Up To 57 HP & 73 Lb-Ft
- 1 Second Faster 0-60 Time
- TransCommand Protects Transmission
- Display DPF Regen Status And Def Level
- ActiveSafety Protects Engine/Powertrain
- Each Level Adds Approximately 10hp Each
- 4.3 Truck Length Lead In In The 1/4 Mile
- Tune Works Seamlessly While In Cruise-Control
- AutoRate Tunes In Realtime Using Vehicle Diagnostics
- iDash Displays 5 Custom Pages Of 2-8 Gauges Per Page
- DataMonster Logs Up To 20 Min/Max Value Custom Alerts
- 6 Power Levels Can Be Changed On-The-Fly With The iDash
- Experience Huge Torque And Horsepower Gains For Tow And Fun
- Interfaces With OBD-II Port To Communicate With The Vehicle
- iDash Shows Real-Time Bar Graph Of Derringers's Added Power
- View Data Logs On iDash Or Transfer To Computer For Analysis
- Warranty Safe: No Reflash Required And No Traces Left In ECM
- Simple Plug-And-Play Install With Easy Removal For Dealer Service
- iDash Displays Temps, Pressures, Speeds, Info Your Dashboard Won't
- iDash Displays Selectable Alerts For Speed, Coolant Temp, Trans Slip, Etc
AutoRate Dynamic Tuning
- Exhaust Gas Temperature (EGT) — Monitors EGT and intelligently modulates fueling to maintain a safe maximum EGT, protecting your turbo and engine.
- Altitude compensation — Senses ambient air pressure, controlling the turbocharger to maintain added boost and power as altitude increases.
- Diesel Particulate Filter (DPF) Regen — Monitors your DPF regen status to ensure the process completes successfully.
- Accelerator Pedal Monitoring — Rolls in additional power progressively, optimizing for both part-throttle fuel economy and max power when you ask for it.
- Full Power Timer — Allows for 30 seconds of wide-open throttle before transitioning to the recommended power level for sustained tow/haul.
- Coolant Temperature Monitoring — Maintains safe power based on coolant temp.
- During warmup, no power is added below 120° F
- Power ramps in & fully available above 150° F
- If the coolant overheats for any reason, the Derringer starts removing its power at 230° F
- Additional power is totally removed if you exceed 240° F
TransCommand Active Transmission Safety System
The Derringer is calibrated to modulate power during shifting while ramping up hydraulic pressure for better engagement. Competitors lack OBD-II data and always add power at wide-open throttle causing excessive transmission, clutch, and torque converter slip and damage.- Intelligent Shift Tuning — Senses ambient air pressure, controlling the turbocharger to maintain added boost and power as altitude increases.
- Boost and Fuel by Gear — Monitors your DPF regen status to ensure the process completes successfully.
- Accelerator Pedal Monitoring — Rolls in additional power progressively, optimizing for both part-throttle fuel economy and max power when you ask for it.
- Tuned Hydraulic Pressure — Allows for 30 seconds of wide-open throttle before transitioning to the recommended power level for sustained tow/haul.
- Torque Converter Clutch (TCC) Monitoring — Maintains safe power based on coolant temp.
- Shift signal is optimized for the power level protecting the transmission, increasing shift speed, and avoiding ECM power derates.
- Calibration is tuned for optimum traction and performance providing the right firmness of shift automatically.
- Ramps hydraulic pressure faster than stock, maintaining engagement as power is added safely within factory limits.
- Adjusts TCC slip to safe levels, lowering fluid temperature, and preventing extended wear.
- Transmission Slip Monitoring - Light throttle shifts remain smooth and firm, full-throttle shifts are solid and decisive.
ActiveSafety Health Monitoring
The Derringer is the only tuner available that includes Active Safety health monitoring circuitry.- Internal diagnostics check system 100 times per second.
- Checks MAP and FRP signals and monitors CPU activity
- Activates in event of failure or loss of 12V power. Bypass relays smoothly return stock power with no loss of power or "Limp Home" Mode.
Manufacturer Warranty*:
1 Year
1 Year
Shipping Restrictions Apply
This product can not be shipped to these states/provinces: CA
This product can not be shipped to these states/provinces: CA
Note:
When running multiple iDash together, purchase 1 Primary and 2-3 Expansion gauges.
Does not include mount for iDash.
When running multiple iDash together, purchase 1 Primary and 2-3 Expansion gauges.
Does not include mount for iDash.
Instructions & Tech Info
Installation Info
Reviews For Banks Power 66798
Overall Rating
/5
1 Review
Rating Snapshot
1
0
0
0
0
Verified Buyer
1886360 Derringer
Jojo (Madisonville TN) | December 18th, 2022
Fantastic product! Easy to install instructions and great results!
Write a Review
Review this product and help other XDP customers make informed decisions!
Frequently Asked Questions
No questions about this product. Be the first to ask a question!
Ask A Question
Ask a question about this product
Please allow up to 1 business day for reply.
Specifications For Banks Power 66798
MPN
66798
SKU
BP66798
GTIN
801279667983
ID
81470
Manufacturer Name
Banks Power
Shipping Weight
4.00 lb.
Shipping Length
10 in.
Shipping Width
6 in.
Shipping Height
6 in.
Fuel Type
Diesel / Gas
E-Code
3
EO Number
d-161-148
Manufacturer Warranty*
1 Year
