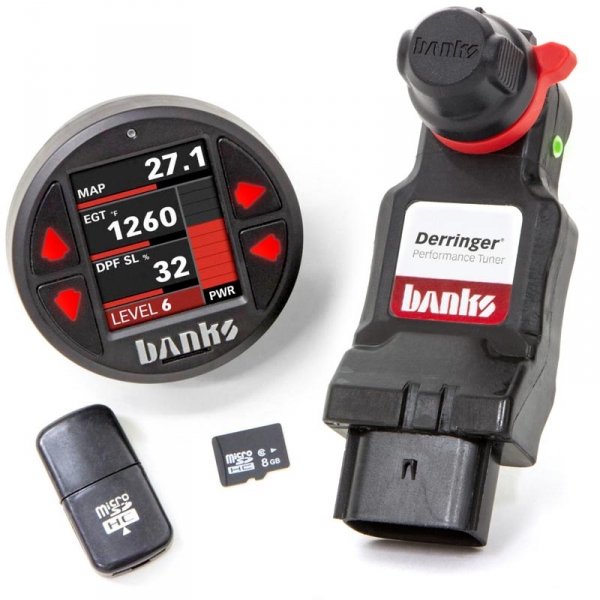

Banks Power 67103 Derringer Tuner (Gen2) With iDash 1.8 DataMonster
PART#
67103 | SKU BP67103
★★★★★
Vehicle Fitment For:
2020-2023 GM 6.6L Duramax L5P
See full application list below
NOTES: When running multiple iDash together, purchase 1 Primary and 2-3 Expansion gauges. Does not include mount for iDash.
Discontinued
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Description
Add Up To 81 HP & 144 LB-FT Torque
The Banks Power 67103 Derringer Tuner (GEN2) With iDash 1.8 DataMonster from XDP adds up to 81 horsepower and 144 lb-ft of torque to your 2020-2023 6.6L Duramax L5P. The included iDash 1.8 SuperGauge gives you the ability to change tunes on-the-fly, while monitoring engine and trans functions. With the upgraded DataMonster you also have the ability to datalog up to 100 Derringer Engine/Trans parameters through a Micro SD Card.
The Derringer comes with 6 switched settings: Stock, Plus, and Sport. Level 6 produces best-in-class performance and knocks you back in your seat. The Level 3 setting is for work use and offers great mid-range feel. When running Level 3 you will see your ramp merging speeds and passing times greatly improved while transporting a heavy load or pulling a trailer.
Separating the Derringer from other tuners are safety features such as AutoRate, TransCommand, and ActiveSafety which let you put the power to the ground without damaging your drivetrain! Best of all there is no reflash required and no traces left in ECU. All you need to do is choose your setting and let the Derringer do the rest!
Features:
- Adds Up To 81 HP And 144 Lb-Ft
- Works While In Cruise-Control
- TransCommand Protects Transmission
- ActiveSafety Protects Engine/Powertrain
- AutoRate Tunes In Realtime Using Vehicle Diagnostics
- Real-Time Bar Graph On iDash Displays Derringer's Added Power
- Warranty Friendly: No Reflash Required And No Traces Left In ECM
- The Derringer Utilizes Your Truck’s ECM To Make Intelligent Calculations
- Simple Plug-And-Play Installation With Easy Removal For Dealer Service
- Update Derringer Firmware, Calibration Through iDash Using MicroSD Card
- Interfaces With OBD-II Port (On-Board Diagnostics) To Communicate With Vehicle's ECM
- 6 Power Levels That Can Be Changed On-The-Fly Via iDash. Each Level Adds Approx 16 HP
AutoRate Dynamic Tuning
Unlike the fixed tuning used by others, the Derringer calibration is continuously adjusting to provide you the peak possible performance under every driving condition. By utilizing the power of the OBD-II data, the tuner intelligently fine-tunes its calibration on the fly without you having to change its power level.
- Exhaust Gas Temperature (EGT) – The Derringer senses your engine’s EGT and intelligently modulates fueling to maintain a safe maximum EGT, protecting your turbo and engine.
- Altitude compensation – The Derringer senses ambient air pressure, controlling the turbocharger to maintain added boost and power as altitude increases.
- Diesel Particulate Filter (DPF) Regen – The Derringer tuner constantly monitors your DPF Regen status and will optimize its calibration to ensure the DPF Regen process completes successfully.
- Accelerator Pedal Monitoring – The Derringer senses accelerator pedal position to roll in additional power progressively, optimizing part-throttle fuel economy and giving max power when you ask for it.
- Coolant Temperature Monitoring – The Derringer senses coolant temp to control added power. During warmup, no power is added below 120° F, then power is ramped in and fully available above 150° If the coolant overheats for any reason, the Derringer starts removing its power at 230° F, and additional power is totally removed if you exceed 240° F.
- Full Power Timer – The Derringer allows for 30 seconds of wide-open throttle before transitioning to the recommended power level for sustained tow/haul. (Our research has shown that your ECM when at full power will hit 1450° EGT and after a minute or so will pull out fuel to cool things down. So, we do the same thing.)
TransCommand Active Transmission Safety System
In addition to AutoRate Adaptive Tuning, the Derringer utilizes key engine and transmission parameters to enhance shift performance and improve the longevity of your transmission. Because the competitors lack the essential OBD-II data, they always add power at wide-open throttle—no matter what! This can cause excessive transmission slip, torque converter clutch slip, and even 100+ HP engine derates in order for the transmission to complete the shift. This harms the overall performance and degrades your transmission. The Derringer is meticulously calibrated and extensively tested to properly modulate power during shifting, optimizing performance and safety.- Intelligent Shift Tuning – The transmission shift request signal is monitored to optimize the power level prior to the shift protecting the transmission, increasing shift speed, and avoiding ECM power derates.
- Boost and Fuel by Gear – Gear based calibration allows for optimum traction and performance
- Torque Converter Clutch Slip Monitoring – The Derringer adjusts to modulate TCC slip to safe levels.
- Transmission Slip Monitoring – The Derringer adjusts calibration to modulate transmission slip to safe levels
ActiveSafety Health Monitoring
The Derringer is the only tuner on the market to include ‘Active Safety’ health monitoring circuitry. This active failsafe system utilizes bypass relays to smoothly transition your vehicle to stock power levels in the event of any trouble signs in the Derringer. The system constantly monitors various parameters over 250 times a second to ensure that everything is operating as it should. If any competitive tuners lose power or fail in any way, they will instantly trigger a “limp home” mode where all power is lost and the vehicle dangerously slows to a crawl. If the same fault condition occurs to the Derringer it will gracefully remove its additional power and return to stock power levels without a hitch.- Health Monitoring: Internal self-diagnostics checks the health of the system 250 times per second
- Monitors MAP and FRP signals for out of range condition (disconnected or short circuit)
- Active safety engages if 12-volt power is lost to the Derringer tuner
Additional Features
- Simple plug-and-play installation
- Warranty friendly: no reflash required and no traces left in ECM
- Enclosed in a compact housing which is easily concealed
- LED Derringer status indicator
Additional Features with iDash DataMonster or SuperGauge
- 6 power levels with on-the-fly, controlled by iDash
- Derringer screen for viewing added power in real-time
- Regen status displayed over power level when Regen is active
- Datalog up to 100 Derringer, engine, or transmission parameters to MicroSD card
- Update Derringer software and calibration through iDash
- Expand the system with other Banks Bus products
- AirMouse Ambient Air Density Module
- 4-CH Analog Sensor Module*
- 4-CH Thermocouple Module*
Manufacturer Warranty*:
1 Year Limited
1 Year Limited
Note:
When running multiple iDash together, purchase 1 Primary and 2-3 Expansion gauges.
Does not include mount for iDash.
When running multiple iDash together, purchase 1 Primary and 2-3 Expansion gauges.
Does not include mount for iDash.
Instructions & Tech Info
Installation Info
Reviews For Banks Power 67103
Overall Rating
/5
2 Reviews
Rating Snapshot
2
0
0
0
0
Verified Buyer
Banks Rocks #1766578
Dick (TX) | July 25th, 2022
Installed in less than an hour. Really put the pep in the 6.6. Can't wait to get her on the hwy
Verified Buyer
very satisfied
steve anderson (west edmeston ny) | July 8th, 2022
the tuner was easy to install ,and really woke up my truck
Write a Review
Review this product and help other XDP customers make informed decisions!
Frequently Asked Questions
Can you raise or delete speed governor?
The Banks Power 67103 Derringer Tuner (GEN2) With IDASH 1.8 DATAMONSTER does not remove or alter the factory governor.
Ask A Question
Ask a question about this product
Please allow up to 1 business day for reply.
Specifications For Banks Power 67103
MPN
67103
SKU
BP67103
GTIN
801279671034
ID
44300
Manufacturer Name
Banks Power
Shipping Weight
4.00 lb.
Shipping Length
10 in.
Shipping Width
6 in.
Shipping Height
6 in.
Fuel Type
Diesel
E-Code
2
EO Number
D-161-149 & D-161-156
Manufacturer Warranty*
1 Year Limited
Prop 65
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
