USD 664.05
Part #: FASSTS D08 165G

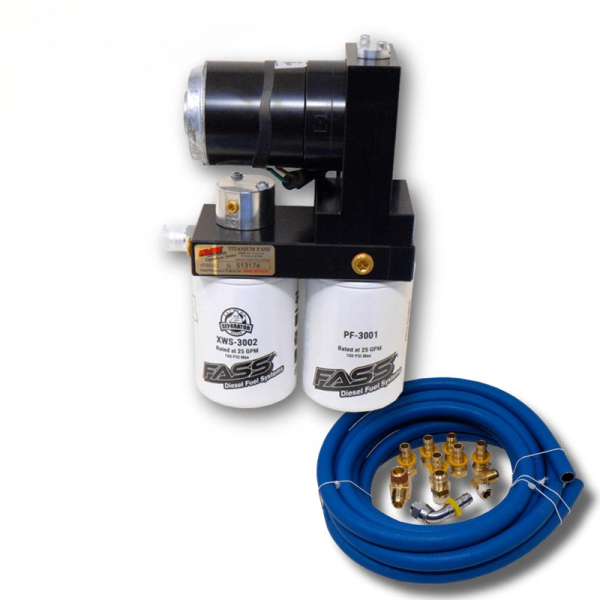

FASS TS D08 165G Titanium Signature Series 165G Fuel System

Vehicle Fitment:
1998.5-2004.5 Dodge 5.9L Diesel (moderate to extreme)
Part #: FASSTS D08 165G
★★★★★ ★★★★★ 11 Reviews
$699.00 $664.05
Buy now, pay later using Affirm Logo during checkout.
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Our Recommendations Compatible Products
Scroll to View More


The FASS TS D08 165G Titanium Signature Series 165GPH Fuel System with Whisper Technology is engineered to be the top performing, longest lasting and most reliable aftermarket filtration system on the market for your 1998.5-2004.5 Dodge Ram 5.9L Diesel. Rated at 165 gallons per hour and backed by a limited lifetime warranty, the Titanium Signature Series offers advanced filtration that will help protect your Diesel fuel injection system, effectively extending the life of your Injection Pump and Injectors. These benefits include: improved filtration rating of 3 Microns, a built in water separation filter and FASS Fuel Systems patented air/vapor removal process. For moderate to extreme engines 600HP-900HP

Titanium Signature Series
With over 2.5 years in the making, FASS has done extensive testing, research, and manufacturing on their Signature Series Fuel Systems. Featuring the FASS Whisper Technology specially designed to decrease pump noise, improve pump life, improve flow rate, and increase overall pump performance, the Signature Series provides you with the most reliable aftermarket fuel system in the industry.

FASS Silencing Technology (FST)
Developed by the engineering team at FASS Fuel Systems to help reduce the noise created by aftermarket fuel and air separation systems. By using radius cuts, tighter tolerances on all gears and a high quality military Specd Coating over the aluminum base, FASS Fuel Systems is able to develop the quietest fuel air separation system on the market.

Performance Radius Cuts (PRC)
An advanced machining technique used to improve the flow of fuel through the pump by creating smooth flowing cuts within the aluminum housing. This prevents the reintroduction of air and vapor back into the fuel and also to prevent stagnant fuel pockets from forming within the corner of a 90 degree bend.  FASS Titanium Signature Series Fuel Pumps are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90 degree fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.

Mass Flow Return (MFR)
Technology is used to continually polish your fuel by keeping a positive pressure on the fuel being delivered to the engine and returning the fuel, that's not yet needed, back to the tank after it has been passed through the filtration process, removing dirt, air, vapor and water. This means your fuel is constantly being moved and cleaned. This guarantees that your truck always has the freshest and cleanest fuel possible.

Bolt On Bracket Mounts
Old mounting styles required drilling or welding when mounting your pump. This has been simplified with the FASS bolt on brackets that utilize your factory bed bolt that secures your truck bed to the frame. Mounting the Titanium Signature Series Pump takes only minutes and all brackets are made from machined steel for durability, support and strength.

  • 165GPH @ 16-18 PSI
  • Whisper Technology
  • 1/2" Fuel Lines & Ports
  • 3 Micron Filtration Rating
  • Bolt-On Bracket Installation
  • Improved Cold Weather Starts
  • 30K Mile Filter Life Expectancy
  • Removes Air, Water, & Debris From Diesel Fuel
  • Increases Efficiency, Performance & Smoother Idle
  • Optional Electric Heater & Fuel Pressure Gauge Port
  • Protects & Extends The Life Of Your Fuel System & Injectors
Note: If your truck has been retrofitted with an in-tank pump, you must use a suction tube kit, sump, or purchase a 2005+ TS D07 165G Kit (see products below).

Disclaimer: XDP is in no way affiliated with Cummins or any of its subsidiaries or related companies, and that Cummins has not authorized the sale of any of XDP's parts, and has not tested or approved any of XDP’s parts for use in genuine Cummins brand products.

Vehicle Fitment

1998.5 Dodge 5.9L 24V Cummins
1999 Dodge 5.9L 24V Cummins
2000 Dodge 5.9L 24V Cummins
2001 Dodge 5.9L 24V Cummins
2002 Dodge 5.9L 24V Cummins
2003 Dodge 5.9L 24V Cummins
2004 Dodge 5.9L 24V Cummins
2004.5 Dodge 5.9L 24V Cummins


  • MFG. Number TS D08 165G
  • Manufacturer Name FASS
  • Shipping Weight 20.00 lb.
  • Shipping Length 14 in.
  • Shipping Width 20 in.
  • Shipping Height 10 in.
  • Fuel Type Diesel
  • E-Code 2
  • EO Number d-713-4
  • UPC 850044106424
  • Warranty Yes
  • Warranty Info Limited Lifetime
  • Prop 65 Prop 65 WarningWARNING: Cancer & Reproductive Harm -
  • Internal L13.00R11.00


★★★★★ ★★★★★
4.2/5 Stars out of 11 Reviews
Verified Buyer
Good product
Pretty straight forward to install, trucks seems very happy with the upgraded lift pump.
Verified Buyer
Fass D08 165G
Looks like a quality unit. I'll be running it on a 24V swapped F250. Recent Order (#1875845)
Verified Buyer
Good product
Good product helped my 24 valve
Pages 1   2   3   4

Write a Review

Include Your Order Number For a Chance to Win a $100 Gift card

Overall Rating

Your Information

Email Address will not be made public.

Questions and Answers

Does this come with all hardware such as the fuel lines, electrical wires, fittings, etc.?
View Staff Answer
Yes, the FASS TS D08 165G Titanium Signature Series 165G Fuel System includes everything you need for installation.
Will this work on a 2001 24v with an in tank pump
View Staff Answer
Yes, the FASS TS D08 165G Titanium Signature Series 165G Fuel System will work on your application by bypassing the intake pump.
Does it come with the fuel filters?
View Staff Answer
Yes, the FASS TS D08 165G Titanium Signature Series 165G Fuel System includes both filters.
