Fleece Billet Under Hood Fuel Filter Assembly FPE-FMC-UHFA-1123
PART#
FPE-FMC-UHFA-1123 | SKU FPE-FMC-UHFA-1123
★★★★★
Vehicle Fitment For:
2011-2026 Ford 6.7L Powerstroke
See full application list below
NOTES: The 2011-2016 model trucks use only one inlet and one outlet fitting. For 2017-2026 trucks, an additional quick disconnect fitting is provided for the required additiona
$199.00
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Description
Order the Fleece FPE-FMC-UHFA-1123 Billet Under Hood Fuel Filter Assembly from XDP for your vehicle today. The plastic OE filters are prone to cracking and fuel leakage - eliminate the risk of a cracked filter with our billet aluminum cap assembly and billet aluminum quick disconnect fittings. Our drop-in replacement filter assembly locks directly into the stock filter location and utilizes a replaceable spin-on Donaldson filter that is easily serviceable. The kit includes an extra Donaldson fuel filter, further extending the time before you need to purchase an additional filter.
Understanding The 6.7L Powerstroke Fuel Filtration System
The fuel system for the 6.7L Powerstroke has a low-pressure (60-70 psi) fuel pump along with two independent fuel filter components. On the 2011-2016 trucks, the primary under-bed fuel filter is combined with the frame-mounted fuel pump assembly. In 2017, Ford moved the fuel pump to the fuel tank, with the under-bed filter mounted to the tank or frame rail, depending on bed length. Since 2011, all models have incorporated a secondary, under-hood filter that is mounted on the driver's side (left) valve cover.
Factory Filtration
Both the primary under-bed and secondary under-hood filters work together for water-coalescence and particle filtration, including filtration of the injector return fuel by the secondary filter. Ford Motorcraft markets these two filters as a pair, with a 5.1-micron rating and 98% efficiency. They do not publish the performance of each filter individually. When developing filtration kits for the 6.7L Powerstroke, Fleece separated the filters to independently verify the performance. Here are the findings:
2011-2016 Primary Under-Bed Fuel Filter - 20 Micron @ 89% Average Efficiency
2017-2026 Primary Under-Bed Fuel Filter - 20 Micron @ 96% Average Efficiency
2011-2025 Secondary Under-Hood Fuel Filter - 4 Micron @ 96% Average Efficiency / 10 micron @ 99% Average Efficiency
Advertised Combined System? 5.1 Microns at 98% efficiency.
Fleece Filtration
When developing a fuel filter kit for the 6.7L Powerstroke, Fleece worked with filter manufacturers to select filters that would perform on par with or better than the OEM units, and to provide a product that improves serviceability, availability, and durability. Beyond filtration capability, it is equally important to ensure proper flow rates and acceptable pressure drops are maintained in the filter selection. For consistency with OEM testing, performance data is reported at comparable efficiency and/or micron levels.
2011-2016 Fleece Performance Primary Under-Bed Fuel Filter - 20 Micron @ 94% Average Efficiency
2011-2026 Fleece Performance Secondary Under Hood Fuel Filter Assembly (With Donaldson Filter) - 4 Micron @ 95% Average Efficiency / 9 Micron @ 99% Average Efficiency
Features:
- Steel Adapter Fitting For The Filter
- Heavy Duty Anodized Billet Aluminum Cap
- Drop-In Replacement For The Factory Under Hood Filter
- Heavy Duty Anodized Billet Aluminum Quick-Disconnect Fittings
- Extra Donaldson P555095 Filter Included With The Kit (9 Micron Rating At 99% Efficiency)

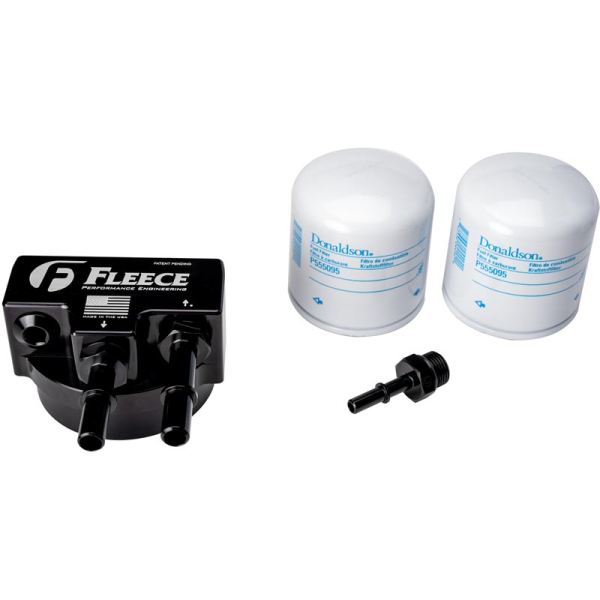

Kit Includes:
- (1) Under Hood Filter Base
- (2) Donaldson Filter #555095
- (1) 1/2" Quick Disconnect. Part No. FPE-34552-A (Pre-Installed)
- (1) 5 -8AN Hex Socket Plug. Part No. FPE-SP-3416 (Pre-Installed)
- (1) 12mm Quick Disconnect. Part No. FPE-34781-A (Pre-Installed)
- (1) 5/16" Quick Disconnect To 3/4-16 O-Ring. Part No. FPE-34552-A
- (1) Fuel Filter Adapter Fitting – M16x1.5. Part No. FPE-FF-M16-ADPT (Pre-Installed)
Manufacturer Warranty*:
1 Year Limited
1 Year Limited
Shipping Restrictions Apply
This product can not be shipped to these states/provinces: CA
This product can not be shipped to these states/provinces: CA
Note:
The 2011-2016 model trucks use only one inlet and one outlet fitting.
For 2017-2026 trucks, an additional quick disconnect fitting is provided for the required additional fuel return.
Fits 2011-2026 Ford 6.7L Powerstroke equipped with an S&S Diesel Motorsport DCR conversion kit or the S&S Diesel CP4 Disaster Prevention Kit.
Replaces the under-hood factory filter in Motorcraft Kits FD-4615 and FD-4625AA that contain manufacturer part numbers HC3Z9N184C and BC3Z9N184B.
The 2011-2016 model trucks use only one inlet and one outlet fitting.
For 2017-2026 trucks, an additional quick disconnect fitting is provided for the required additional fuel return.
Fits 2011-2026 Ford 6.7L Powerstroke equipped with an S&S Diesel Motorsport DCR conversion kit or the S&S Diesel CP4 Disaster Prevention Kit.
Replaces the under-hood factory filter in Motorcraft Kits FD-4615 and FD-4625AA that contain manufacturer part numbers HC3Z9N184C and BC3Z9N184B.
Instructions & Tech Info
Installation Info
Reviews For Fleece Performance FPE-FMC-UHFA-1123
Verified Buyer
under hood filter
Greasy Nick (my garage) | May 29th, 2026
Easy to install. thought it would be a snugger fit like the OEM. But way better than the plastic. Next up is the under-body filter.
Under Hood Filter
Casey (North Dakota) | December 21st, 2025
Super easy to install. However, 4/5, as it is a MOFO to get off when changing the filter. I've even lubed the seal before applying, and it doesn't matter. I have to use a pair of channel locks every time I change the filter, and that's even installing hand-tight.
Verified Buyer
Fleece filter
Jim (Vandalia, OH) | December 11th, 2025
Great product, quick shipping, and great price. Easy install, now I don't have to worry about the factory filter failing.
Verified Buyer
Under hood fuel filter
Ferndiesel (Los Angeles CA) | August 7th, 2025
High quality parts and simple install (less than 5 minutes) and I also contacted Fleece performance and found out that it is also CARB certified now.
Verified Buyer
Great product
Wes (Virginia) | April 3rd, 2025
Very simple to install and it locks in to the factory housing, no need for a foam to hold everything in place.
Verified Buyer
Under hood filter
Nick (Texas) | December 16th, 2024
Don't have to worry about this cracking it's heavy duty.
Write a Review
Review this product and help other XDP customers make informed decisions!
Frequently Asked Questions
Does this eliminate the function of the cold fuel bypass?
No, the Fleece Billet Under Hood Fuel Filter Assembly FPE-FMC-UHFA-1123 does not eliminate the function of the cold fuel bypass.
Ask A Question
Ask a question about this product
Please allow up to 1 business day for reply.
Specifications For Fleece Performance FPE-FMC-UHFA-1123
MPN
FPE-FMC-UHFA-1123
SKU
FPE-FMC-UHFA-1123
GTIN
670875719262
ID
145767
Manufacturer Name
Fleece Performance
Shipping Weight
7.00 lb.
Shipping Length
10 in.
Shipping Width
10 in.
Shipping Height
4 in.
Fuel Type
Diesel
E-Code
4
EO Number
d-834-17
Manufacturer Warranty*
1 Year Limited
Prop 65
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
Cross Reference #
HC3Z-9N184-C, HC3Z9N184C, BC3Z-9N184-B, BC3Z9N184B, FD-4615, FD4615, FD-4625AA, FD4625AA
