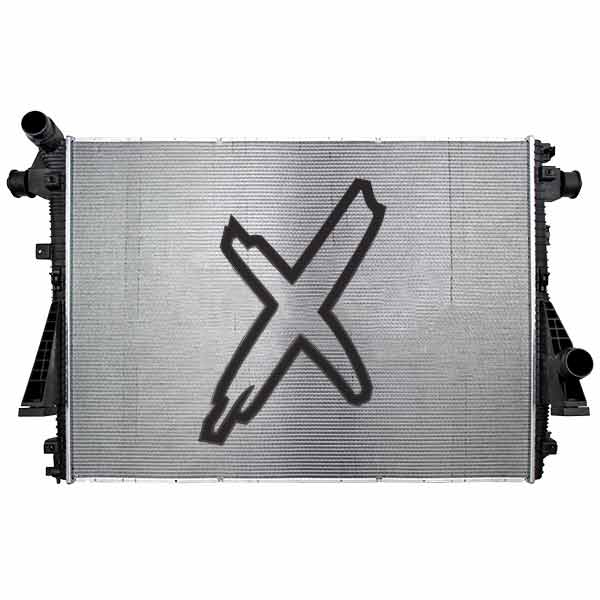

XDP Xtra Cool Direct-Fit Replacement Main Radiator XD291
PART#
XD291 | SKU XD291
★★★★★
Vehicle Fitment For:
2011-2016 Ford 6.7L Powerstroke (Primary Radiator)
See full application list below
$484.95
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Description
Replace the failing main radiator in your 2011-2016 Ford 6.7L Powerstroke with the XDP Xtra Cool Direct-Fit Replacement Main Radiator XD291. Made for a bolt-on installation, XDP's Xtra Cool Direct-Fit Radiators feature multiple upgrades for added strength over your OEM unit. Manufactured using special techniques from the HD and Semi industry, the Xtra Cool Radiators are built to a higher standard and provide you with added protection and reliability. The XD291 is the main radiator located on the engine side of the core support for your primary cooling system. The primary system cools your engine and engine oil cooler.
High Efficiency Core
XDP's Xtra Cool Radiators are built with High-Efficiency Cores. The upgraded core has more fins per inch with heavy-duty tubes to maximize cooling efficiency in your truck.
Internal Reinforcements
Built with special brazing techniques, the Xtra Cool Radiators feature internally reinforced end tubes and construction techniques to provide additional strength at the outside corners where the core is most vulnerable.
Special Gasket Design
To allow for expansion, contraction, and to handle the flex in the front end of your truck Xtra Cool Radiators are built with a proprietary rubber gasket to increase durability and eliminate failure points found in the OE design.
Revised End Tanks
Revised Tanks add strength to the Xtra Cool Radiator. Paying special attention to the weak points, reinforcement ribs have been added to increase durability. In addition, the plasitc mix used to manufacture the end tanks includes a fiber reinforcement to add strength.
Upgraded Mounting Points
To allow secure mounting in the factory location, and eliminate mounting point failures, the Xtra Cool Radiators integrated mounting points have been strengthened for durability.
Tank Attachment
Unlike the OEM design, Xtra Cool Radiator End Tanks are attached with a heavy gauge steel crimp strip. Instead of using aluminum like the factory, the heavy duty crimp eliminates tank and core separation failures that are common with the factory radiator.
Features:
- Direct-Fit
- Upgraded Design For Increased Durability
- High-Efficiency Core To Maximize Cooling
XD291 Specifications:
- Row Quantity: 1
- Core Width: 38-3/8"
- Core Height: 27-3/4"
- Core Thickness: 1-5/8"
- Inlet Connection: 2-1/4"
- Outlet Connection: 2-1/4"
- OEM Part# BC3Z8005E, BC3Z8005K
Application Note:
This is the replacement for the main (primary) radiator only.
Manufacturer Warranty*:
2 Year / Unlimited Mileage
2 Year / Unlimited Mileage
Instructions & Tech Info
Reviews For XDP XD291
Overall Rating
/5
13 Reviews
Rating Snapshot
Verified Buyer
Xdp radiator
Matt | December 13th, 2024
Quick shipping. Good construction. Comes with all J-clips and new bushings. Make sure you order an O-ring kit!
Verified Buyer
XDP radiator
8 Lug (Syracuse NE) | October 13th, 2024
Great fit. I like the fact it looks like a factory radiator, but has better craftsmanship and function over the factory piece. I’ve installed 5 sets of the XDP primary and secondary radiators in my super duty rebuilds. No issues at all! Price is very competitive. Highly recommended!
Verified Buyer
2193577
David (Las Vegas) | February 18th, 2024
Great product good packaging and had all hardware.
Great Product
Ryan (AZ) | March 15th, 2023
Shipping was fast, part fit great, and looks good. I have not seen any lower temps but I do already have a reduced temp t-stat so there is that. Total time took about 4 hours to install.
Verified Buyer
2015 F250
Kevin (Northeast Ohio) | December 27th, 2022
OEM radiator started leaking on the lower driver's side. Seems to be a Ford super duty common issue. Did some research and chose the XDP as a replacement. Shipped with all hardware needed. Use OEM bolts, replace the OEM O-rings in the clip style radiator hoses. Fitment is excellent. Shipping was fast. Radiator was packaged well. Great company and great product! Replace HOSE O-RINGS!!!!! Thank you XDP.
Verified Buyer
Perfect Fit
James (California) | September 3rd, 2022
My tank gasket started leaking in my 2011 F350 so I ordered this X-TRA cool radiator. I especially liked the steel clamp over the aluminum clamp to hopefully prevent the almost unavoidable tank to header leak in the future. This radiator was a perfect fit swap out. Hoping for many years of leak free cooling. Order #1662279
Write a Review
Review this product and help other XDP customers make informed decisions!
Frequently Asked Questions
Does this radiator have the factory holes for the OEM rubber air deflectors at the top and the bottom?
Yes, the XDP X-TRA Cool Direct-Fit Replacement Main Radiator XD29 does include the mounting points for the air deflectors.
Ask A Question
Ask a question about this product
Please allow up to 1 business day for reply.
Specifications For XDP XD291
MPN
XD291
SKU
XD291
GTIN
856217008366
ID
34711
Manufacturer Name
XDP
Shipping Weight
48.00 lb.
Shipping Length
52 in.
Shipping Width
11 in.
Shipping Height
36 in.
Fuel Type
Diesel
Manufacturer Warranty*
2 Year / Unlimited Mileage
Prop 65
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
Cross Reference #
BC3Z8005E, BC3Z8005K
