A multimeter is an essential tool for anyone working on their diesel electrical system. Whether you own a Ford Super Duty, Chevy Silverado, GMC Sierra, Dodge Ram, or Jeep, a multimeter helps you get to the bottom of electrical issues. This handy device can save you time and effort troubleshooting a battery issue, testing fuses, or diagnosing electrical problems. In this blog, we’ll guide you through the basic functions of this tool and show you how to use it effectively on your truck.
Understanding the Multimeter
Before diving into vehicle diagnostics, it’s important to familiarize yourself with the basic functions of a multimeter. Most multimeters have three primary settings:
- Voltage (V) – Measures the electrical potential difference between two points. For automotive work, you’ll primarily use DC voltage (V) since vehicles use direct current.
- Resistance (Ω) – Measures the resistance in an electrical circuit. This helps determine whether a component like a fuse or wire is functioning correctly.
- Current (A) – Measures the flow of electric current in amperes. This is useful for detecting shorts or high current draws in your vehicle.
Step-by-Step Guide to Using a Multimeter on Your Vehicle
Testing the Vehicle Batteries

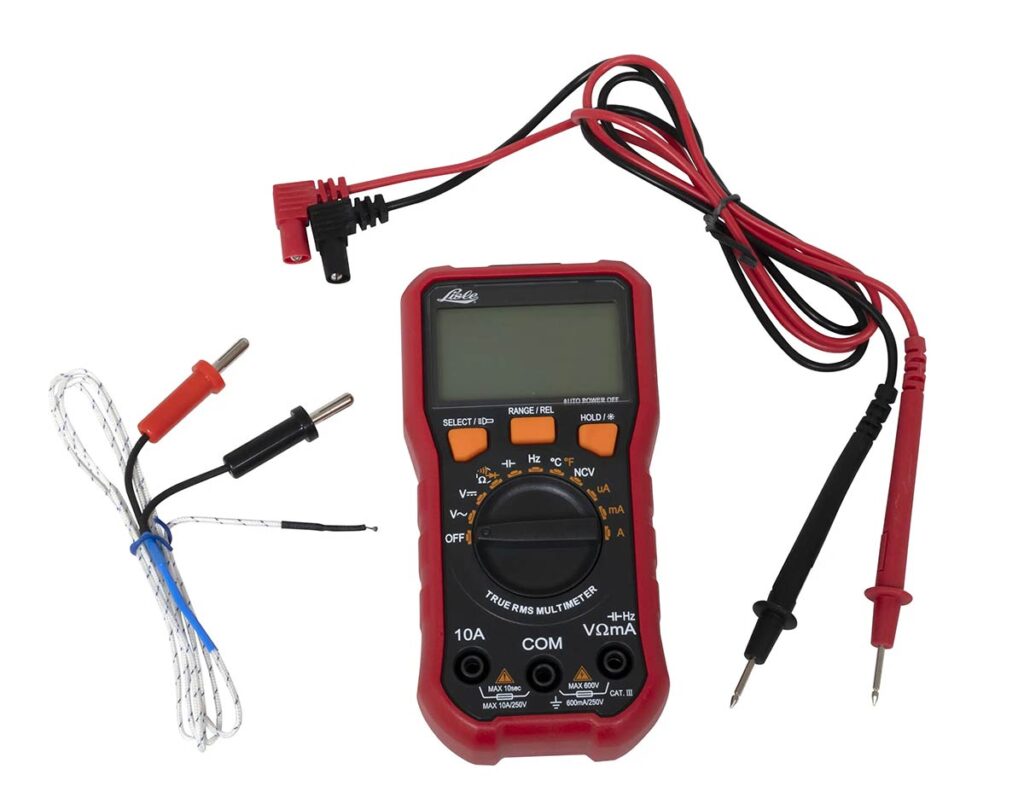

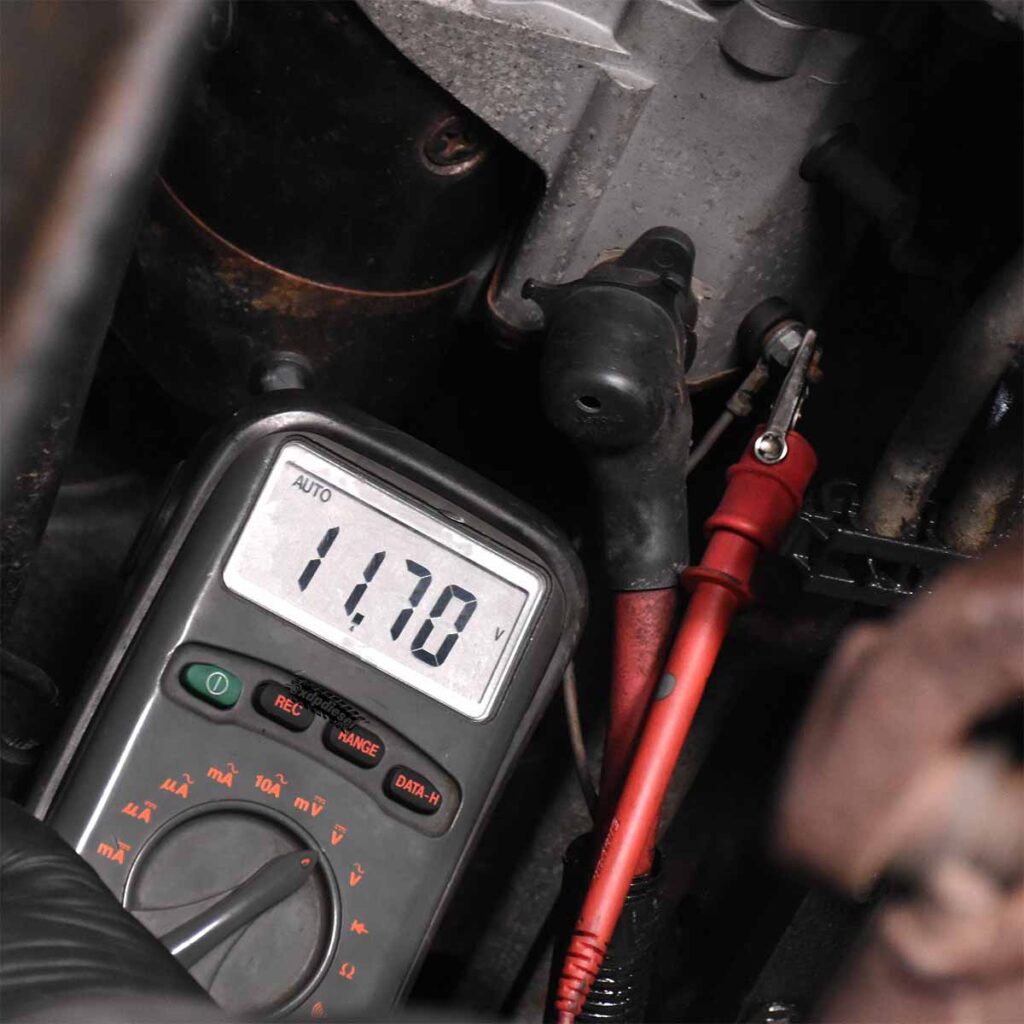

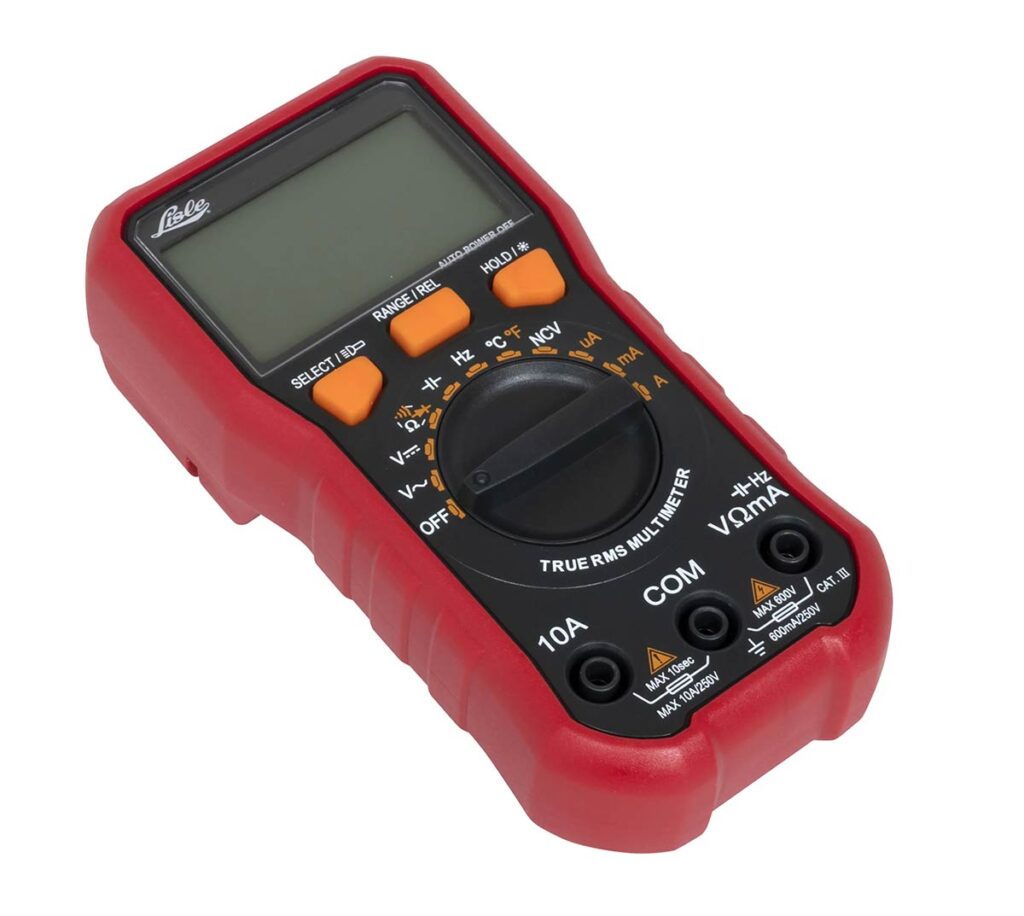

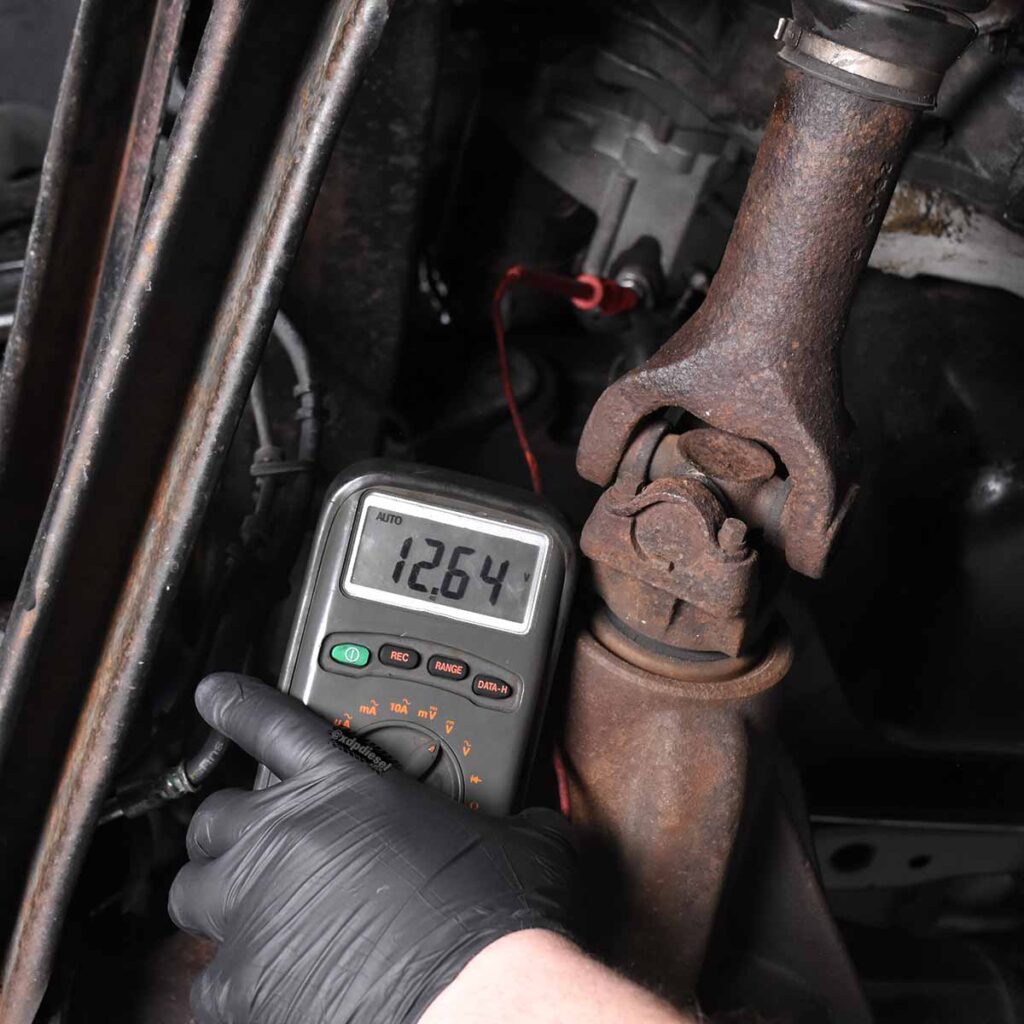

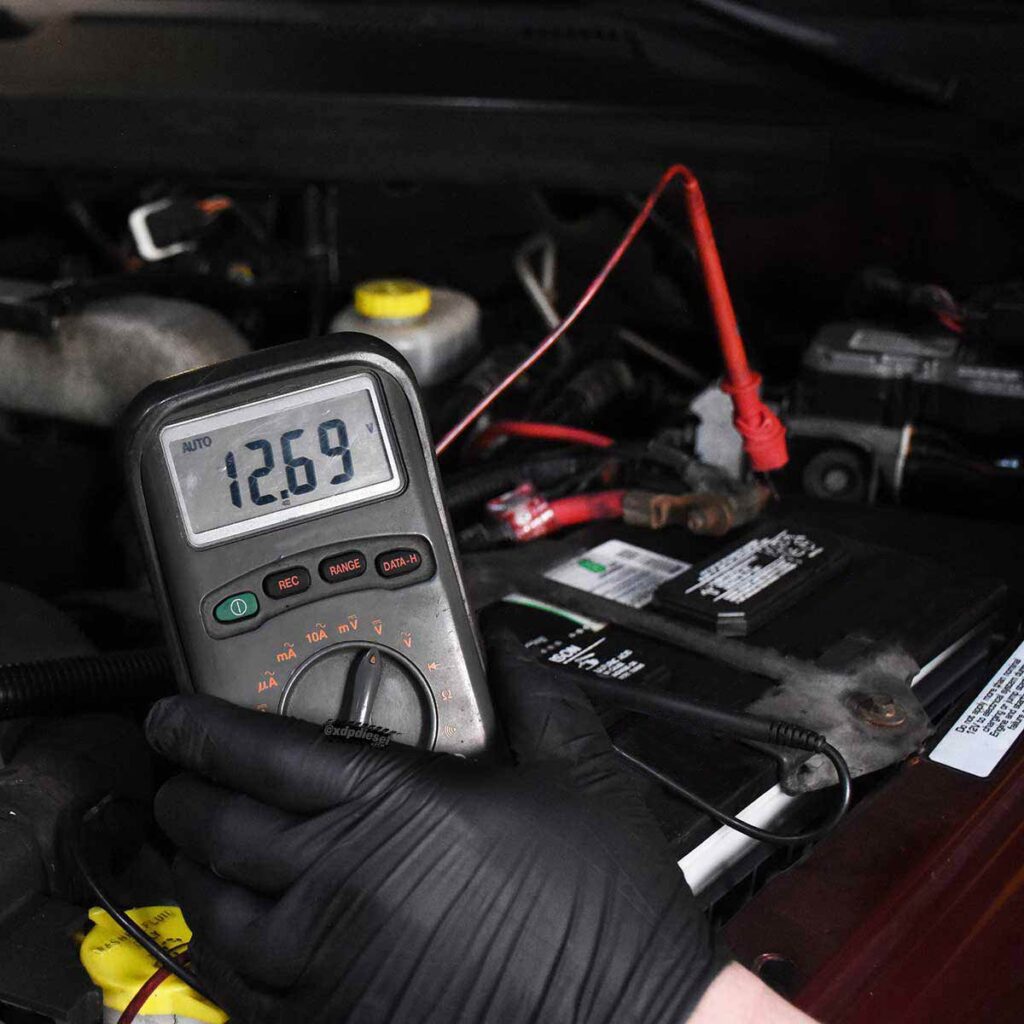

One of the most common uses for a multimeter is to check the condition of your vehicle’s batteries. When testing one of the batteries on your diesel, you need to do each one individually on applications with more than one battery. If you leave the crossover cable connected onto the batteries, you will get false or inaccurate readings. To do this, you set your multimeter to DC Voltage (V). This is often represented by a solid line above a dashed line. Connect the multimeter’s red probe to the positive terminal of the battery (+) and the black probe to the negative terminal (-). Read the voltage on the multimeter display. A healthy vehicle battery should show between 12.4V to 12.6V when the vehicle is off. If the reading is below 12.4V, the battery may need charging. If it’s below 12.0V, the battery has a charging issue. When the engine is running, a reading between 13.7V and 14.7V indicates that the alternator is charging the battery correctly.
Testing Fuses
If you suspect an electrical issue in your vehicle, testing fuses is a good next step. Set the multimeter to the Resistance (Ω) or Continuity setting. This will help you check if the fuse is blown. Remove the fuse you want to test from the fuse box. Touch the multimeter’s probes to the fuse terminals. Polarity does not matter here. Check the reading; If the resistance is very low (close to 0), the fuse is good. If there’s no reading or the meter shows “OL” (open line), the fuse is blown and needs to be replaced.
Checking For Parasitic Drain
If your vehicle’s batteries keeps draining when the vehicle is off, there might be a parasitic draw (an electrical component draining the battery when it shouldn’t). Set your multimeter to the DC Amps (A) mode. Turn off your vehicle and remove the key from the ignition. Disconnect the negative battery cable from the battery. Place the multimeter in series by connecting one probe to the negative battery terminal and the other probe to the negative battery cable. Read the amperage on the multimeter. A typical parasitic draw is under 50mA. Anything significantly higher indicates a problem. You may need to pull fuses one by one to isolate the circuit causing the drain.
Testing Sensors and Electrical Components

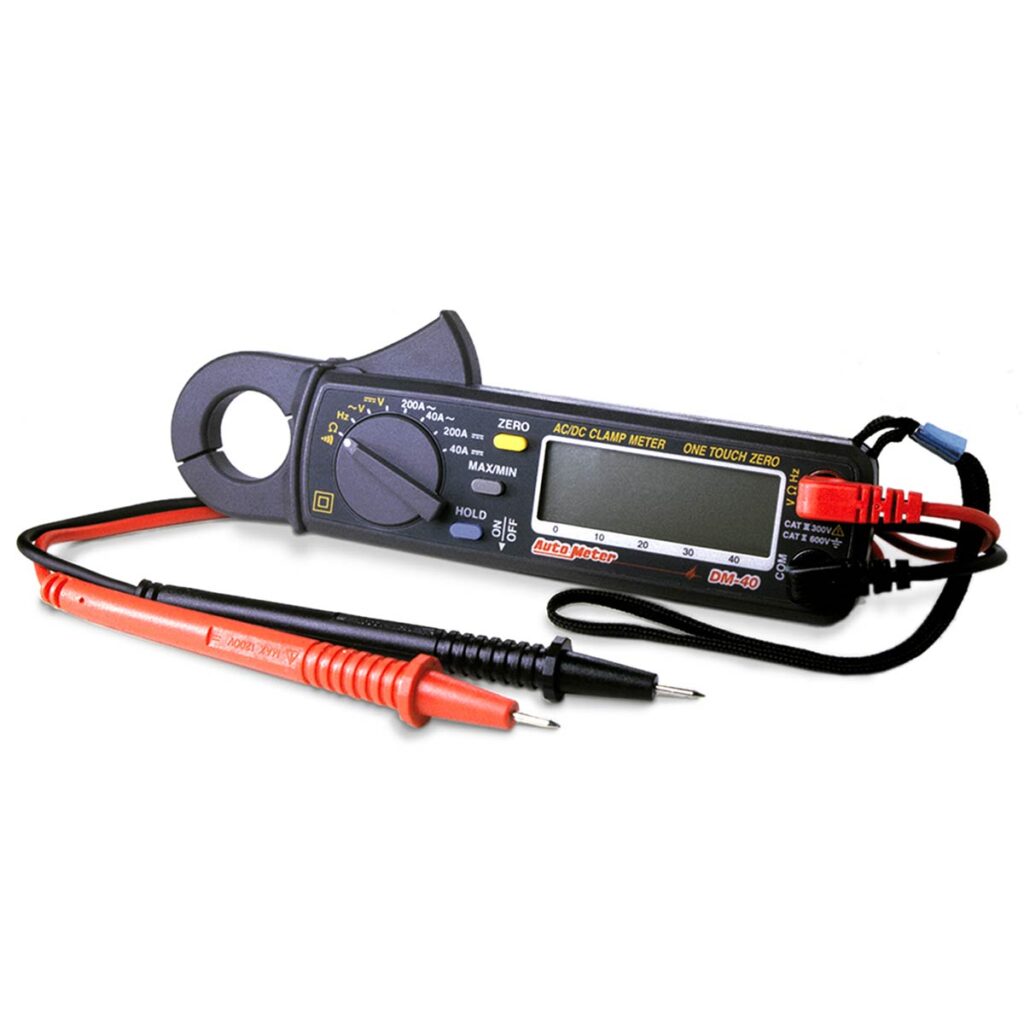

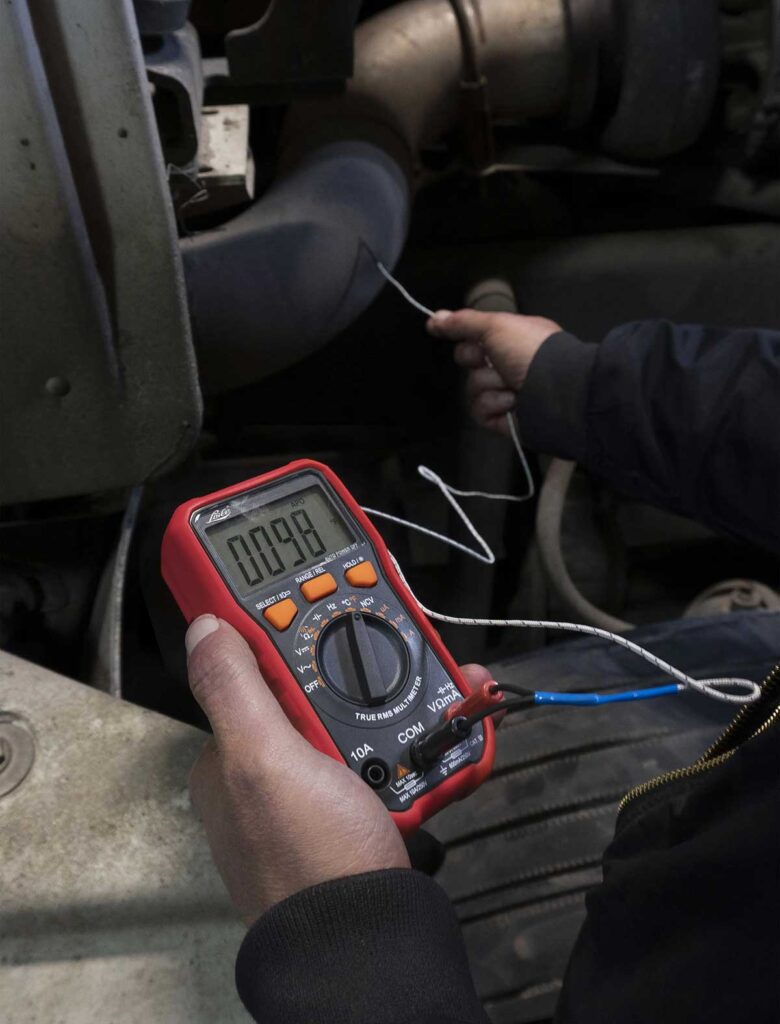

Testing automotive sensors with a multimeter is an essential step in diagnosing issues in a vehicle’s electrical system. Sensors like oxygen, temperature, and throttle position sensors can be checked for proper function by measuring their voltage, resistance, or continuity. To begin, set the multimeter to the appropriate setting, often DC voltage or resistance (ohms), depending on the type of sensor. For example, to test a temperature sensor, measure the resistance and compare it to manufacturer specifications at a given temperature. Voltage tests are common for sensors like throttle position sensors, where you verify that the output changes smoothly as the throttle opens. Careful probing of sensor connectors and wires is crucial to avoid damage. Consistent or unexpected readings can help determine whether the sensor is functioning correctly or requires replacement.
Multimeter Safety Tips
- Turn off power before testing resistance. When testing for resistance or continuity, always make sure the power to the circuit is off to avoid damaging the multimeter.
- Wear gloves and safety glasses. This is especially important when working around batteries and electrical components.
- Inspect the multimeter before use. Ensure that the probes and wires are in good condition and that the multimeter is set to the correct measurement type before starting.
Using a multimeter on your vehicle may seem intimidating at first, but with a little practice, it becomes a valuable skill. From checking the batteries health to diagnosing parasitic drains and blown fuses, a multimeter is an essential tool for any technician, whether a professional or DIY. By following this guide, you’ll be well on your way to mastering electrical diagnostics and keeping your vehicle in top shape.
