Are you experiencing hard starts or a no-start condition in your 2004.5-2007 Ford 6.0L Powerstroke? Oftentimes it can be the result of a leak in your high-pressure oil system. The 6.0 utilizes a unique system that powers the fuel injectors with high-pressure oil. This typically ranges from 500 psi all the way up to 3500 psi. This oil is supplied by a high-pressure oil pump (HPOP) and oil is transported through a series of tubes and passages. Unfortunately, this system contains o-rings, seals, and connectors that, over time, are prone to developing leaks.
A high-pressure oil system bleed-down test is typically necessary to locate leaks. Pressurizing the system with air while the IPR valve is remotely commanded closed can help to audibly trace any leaks. Using the appropriate scan tool/gauges to monitor the data from the PCM can also help reveal issues within the high-pressure oil system.
Ball Tubes and Seals

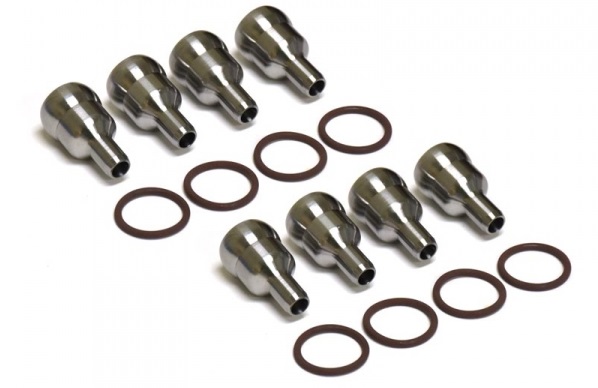

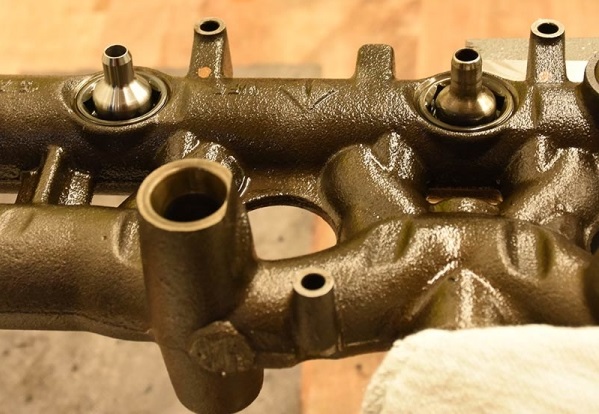

One common culprit is the ball tubes and seals connecting the oil rail to the fuel injectors. Over time the rubber seals will begin to deteriorate and break down. The steel ball tubes, or valves as they are also commonly referred to, are also susceptible to excess wear and can display visible score marks if the seals have failed. No longer do you have to purchase an entire oil rail for $500 apiece. With the proper tool, these are serviceable and easily replaced.
Other Frequent High-Pressure Oil System Issues

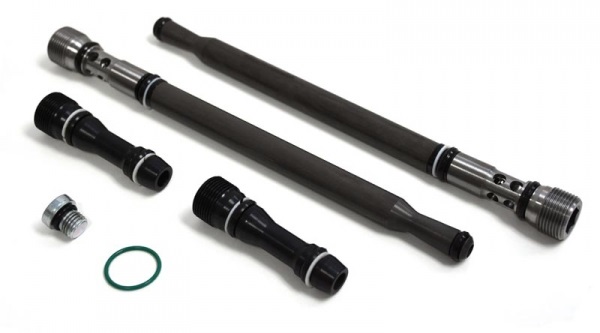

Other frequent issues that typically occur over time in the high-pressure oil system can occur in the oil stand pipes and oil rail “dummy” plugs, as well as the snap-to-connect (STC) fittings, injection pressure regulator (IPR) valve, and injection control pressure (ICP) sensor. The oil stand pipes and oil rail plugs are physically located under the oil rails. It is highly recommended to check and replace these when the rails are out for ball tube and seal replacement.
The snap-to-connect (STC) fitting connects to the HPOP and are also prone to leaking, or in some cases completely separate. The IPR valve can cause plenty of issues stemming from something as small as a clogged or torn screen to a sensor that is faulty. Finally, the ICP sensor is another popular item known to fail and require replacement. When the ICP sensor goes bad you will typically see oil present inside the sensor connector. It can contaminate the terminals and the wiring harness connector, sometimes requiring the replacement of both.
Get your XDP Ford 6.0L High-Pressure Oil System Replacement Parts and Specialty Tools Here –
Ball Tubes and Seals – XD213
Ball Tube Installation Tool – XD226
Oil Stand Pipe & Oil Rail Plug Kit – XD233
STC HPOP Fitting Update Kit – XD269
Injector Pressure Regulator (IPR) Socket – XD261
Common Diagnostic Trouble Codes (DTC) related to the High-Pressure Oil System for the Ford 6.0L Powerstroke: P1211, P1212, P1283, P2284, P2285, P2286, P2287, P2288, P2289, P2290, P2291
