As the summer heat intensifies, there’s nothing quite like the comfort of a cool, air-conditioned truck. Automotive air conditioning (A/C) systems have evolved significantly over the years. In this blog, we’ll explore the fundamentals of vehicle A/C systems, their components, how they work, and tips for maintaining them to ensure optimal performance.
Automotive air conditioning systems function similarly to a household refrigerator, albeit on a smaller scale. Whether you have a Ford F-Series Super Duty, Dodge Ram, Chevy Silverado, GMC Sierra, or something else, each air conditioning system operates in a similar way. Its primary purpose is to cool the air inside the car, but it also plays a crucial role in dehumidifying the air and making the cabin more comfortable.
For vehicles equipped with a cabin air filter, the A/C system also works to remove dust and allergens from the cabin. When components within your A/C system fail and need to be replaced, you have several options. You can use components from manufacturers such as Global Parts Distributers, Dorman, CSF, and Delphi that produce OE-style replacements. These components match the factory fit and function of your vehicle. Or you can get OEM replacement components from manufacturers such as Mopar that match the components installed on your vehicle at the factory. Automotive air conditioning systems may sound complicated but they follow the same basic principals
How Your A/C System Operates
- Compression: The compressor pressurizes the refrigerant, turning it into a high-pressure, high-temperature gas.
- Condensation: The hot, pressurized refrigerant gas flows to the condenser, where it releases heat to the outside air and condenses into a high-pressure liquid.
- Expansion: The high-pressure liquid refrigerant passes through the expansion valve or orifice tube, where it rapidly expands and cools, becoming a low-pressure liquid.
- Evaporation: The cold, low-pressure liquid refrigerant flows into the evaporator. As warm air from the vehicle’s interior passes over the evaporator coils, the refrigerant absorbs the heat and evaporates into a gas. This process cools the air, which is then blown into the car’s cabin.
- Cycle Repeats: The low-pressure gas returns to the compressor, and the cycle begins again.

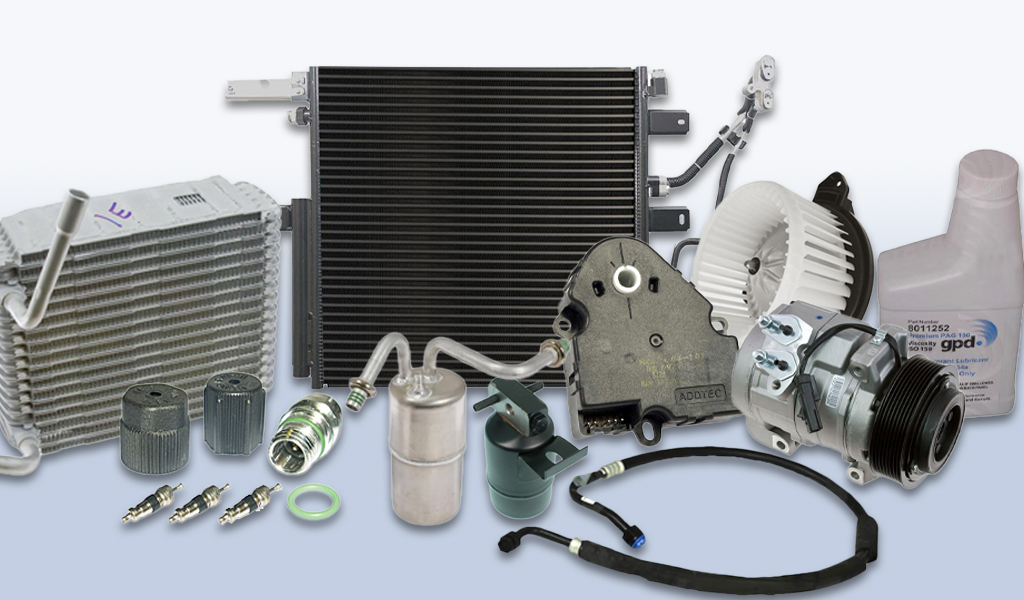

The key components of your vehicle’s A/C system include:

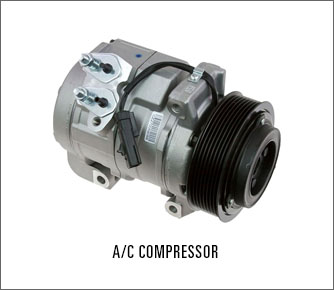

A/C Compressor:
A/C compressors are the heart of air conditioning systems, responsible for compressing the refrigerant and propelling it through the system to facilitate heat exchange. The compressor takes in low-pressure refrigerant gas from the evaporator, compresses it into a high-pressure, high-temperature gas, and then sends it to the condenser. This process is crucial for the refrigeration cycle, as it allows the system to release absorbed heat and cool the air before it is circulated into the interior space. A/C compressors come in various types, including reciprocating, rotary, and scroll compressors, each with its own efficiency levels and suitability for different applications. Proper maintenance of the compressor, such as ensuring adequate lubrication and inspecting for leaks or wear, is vital to prevent failures and maintain the efficiency and longevity of the air conditioning system.

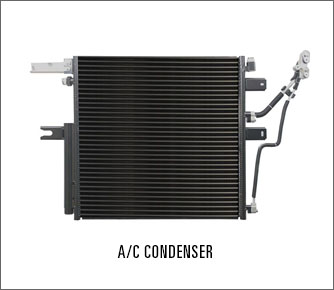

A/C Condenser
A/C condensers play a pivotal role in the heat exchange process that cools indoor spaces. Located in the front of the vehicle by the radiator because it uses air when driving and air movement from the cooling fan to cool the refrigerant, the condenser receives high-pressure, high-temperature refrigerant gas from the compressor. As the refrigerant passes through the condenser coils, it releases heat to the surrounding air, aided by a fan that enhances air circulation. This heat dissipation causes the refrigerant to condense into a high-pressure liquid, which then continues its journey through the system to absorb heat from the indoor air. Efficient operation of the condenser is crucial for the overall performance of the A/C system, as any obstruction or malfunction can hinder heat exchange, leading to reduced cooling efficiency.

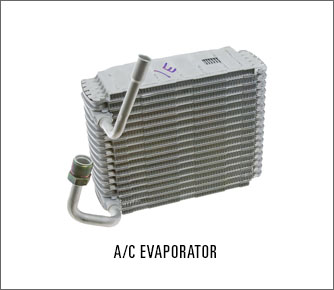

A/C Evaporator
A/C evaporators are responsible for absorbing heat from the interior space to provide cooling. Usually located under the dash, near the blower fan in vehicles, the evaporator houses coils through which the low-pressure refrigerant flows. As warm air from the interior passes over these coils, the refrigerant absorbs the heat, causing it to evaporate into a low-pressure gas while simultaneously cooling the air. This cooled air is then circulated back into the interior space, lowering the overall temperature. The efficiency of the evaporator is critical for effective cooling, and any issues such as dirt buildup or refrigerant leaks can significantly impact its performance.

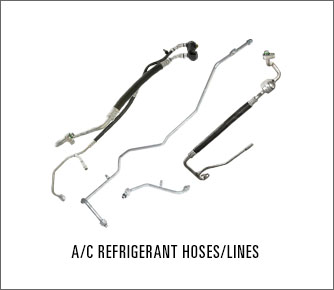

A/C Refrigerant Hoses/Lines
A/C refrigerant hoses and lines transport refrigerant between various parts, including the compressor, condenser, evaporator, and expansion valve. There is a high-pressure side and a low-pressure side. High pressure lines are smaller in diameter and low-pressure lines are bigger in diameter. These hoses and lines must be durable and flexible to withstand high pressure and extreme temperatures, ensuring a secure and leak-free connection throughout the system. Typically made from materials like rubber, metal, or composite materials, they are designed to resist corrosion and degradation over time. Proper installation and maintenance of refrigerant hoses and lines are essential to prevent leaks, maintain system efficiency, and ensure the overall reliability and longevity of the air conditioning system.

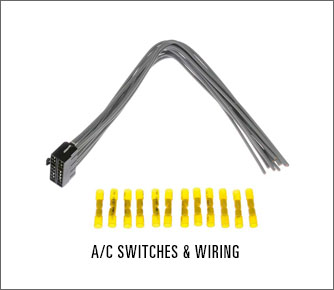

A/C Switches & Wiring
A/C switches and wiring ensure the proper operation and control of an air conditioning system. The switches, which include thermostats, pressure switches, and relay switches, serve as the system’s control mechanisms, regulating the activation and deactivation of various components such as the compressor and fans. The main sensor in the AC system is the pressure sensor. This helps the ECM know when to switch on and switch off the compressor.
There is also the AC cycle switch sensor located on the compressor to tell the ECM if it’s on or off. Wiring connects these switches to the system’s electrical circuit, facilitating the transmission of signals and power. It’s important to ensure that your wiring is in working condition. If the wiring becomes damaged or chafes, it could result in electrical malfunctions such as shorts or fires. Proper installation and regular maintenance of A/C switches and wiring are vital for the reliability, safety, and optimal performance of the air conditioning system.

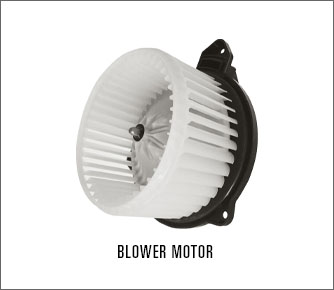

Blower Motor
Blower motors are responsible for circulating air throughout the interior space. These motors are usually placed next to or close to the evaporator. The blower powers the fan that pushes conditioned air through the ducts and out of the vents, ensuring even distribution of warm or cool air to maintain a comfortable indoor environment. Blower motors come in various types, including single-speed, multi-speed, and variable-speed models, each offering different levels of efficiency and control. High-efficiency blower motors, such as variable-speed models, can adjust their speed to match the heating or cooling demand, leading to better energy efficiency and quieter operation. Proper maintenance is essential to prevent wear and tear, reduce the risk of overheating, and ensure the longevity and optimal performance of the HVAC system.

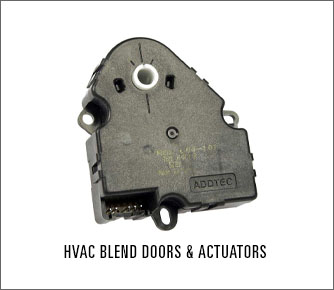

HVAC Blend Doors & Actuators
HVAC blend doors and actuators work together to regulate the temperature and airflow within a vehicle. The blend doors, also known as air mix doors, control the mixture of hot and cold air that flows through the system, allowing for precise temperature adjustments. Actuators are the mechanical devices that move these doors based on signals from the climate control unit. These actuators can be electric or vacuum-operated and ensure that the blend doors are positioned correctly to achieve the desired climate settings. The proper functioning of blend doors and actuators is essential for maintaining comfort, as malfunctioning components can lead to issues such as inconsistent temperatures, poor airflow, or the inability to switch between heating and cooling modes.

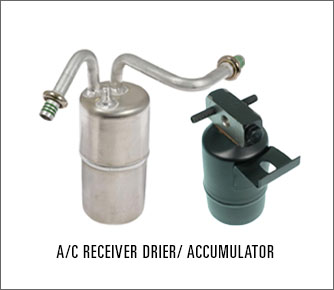

A/C Receiver Drier/ Accumulator
A/C receiver driers and accumulators serve to filter and store refrigerant while protecting the system from moisture and contaminants. The receiver drier, typically found in systems with a thermal expansion valve, is positioned between the condenser and the evaporator. It contains a desiccant that absorbs moisture from the refrigerant, preventing ice formation and corrosion within the system. It stores excess refrigerant and ensures that only vapor, not liquid, enters the compressor, preventing potential damage. Both components play a crucial role in maintaining system efficiency and longevity. They ensure that the refrigerant is clean and dry.

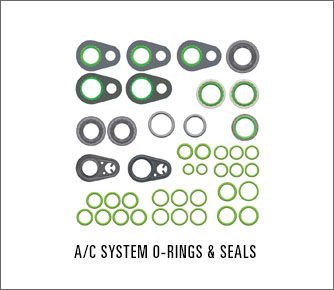

A/C System O-Rings & Seals
A/C system O-rings and seals ensure the integrity and efficiency of air conditioning systems. These rubber or elastomeric rings and seals are used at various connection points throughout the system. They are found between components like hoses, fittings, valves, and compressors. Their primary function is to create a tight, leak-proof seal. This prevents refrigerant from escaping and air from entering the system. Over time, O-rings and seals can deteriorate due to exposure to heat, pressure, and chemicals within the A/C system. When this happens it can lead to leaks and reduced efficiency. Regular inspection and replacement of these seals are essential preventive measures to maintain optimal performance and prevent costly repairs. Using high-quality, compatible seals and ensuring proper installation help the reliability and longevity of the air conditioning system.

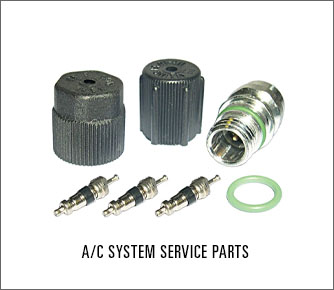

A/C System Service Parts
A/C system service parts encompass a wide range of components essential for maintaining and repairing automotive air conditioning systems. Service parts such as Dye’s are used to help find a leak in the system. Shrader valves are what is used to put the refrigerant in but not escape (same valve that’s on your wheel). Service caps help identify high side and low side of system. They come in two different sizes and sometimes two different colors.
Maintaining Your Vehicle’s A/C System:
To ensure your vehicle’s A/C system operates efficiently, regular maintenance is crucial. Here are some tips:
- Regular Inspections: Have your A/C system checked annually by a professional. They can identify and fix potential issues before they become major problems.
- Refrigerant Levels: Ensure that the refrigerant levels are adequate. Low refrigerant can cause the system to work harder, leading to increased wear and potential damage.
- Clean the Condenser: The condenser can become clogged with debris, reducing its efficiency. Keep it clean to ensure optimal performance.
- Check for Leaks: Refrigerant leaks can significantly impact the performance of your A/C system. Regularly inspect hoses and connections for signs of leaks.
- Replace Cabin Air Filters: Dirty or clogged air filters, in vehicles equipped with them, can restrict airflow and reduce cooling efficiency. Replace them as recommended by your vehicle’s manufacturer.
- Run the A/C Regularly: Even during colder months, running the A/C for a few minutes each week helps keep the system lubricated and prevents seals from drying out.
Understanding how your vehicle’s A/C system works and keeping it well-maintained ensures that you stay cool and comfortable during the hottest months of the year. Regular inspections and maintenance extend the system’s life and enhance its efficiency, providing a more pleasant driving experience. So, next time you hit the road on a scorching day, you’ll appreciate the cool breeze that well-maintained automotive air conditioning systems provide. Find all the air conditioning components you need at XDP today to keep your rig cool and comfortable.
