While injector replacement can be an involved job, having the right specialized tools can make the process much smoother. Addressing a few key replacement parts while you’re in there can also help ensure long-term reliability.
Note: For complete step-by-step instructions, always refer to the factory service manual. This guide is intended as a supplemental resource to highlight important tools and parts to consider during a 7.3L injector install.
Tools to Make the Job Easier During a 7.3L Injector Install

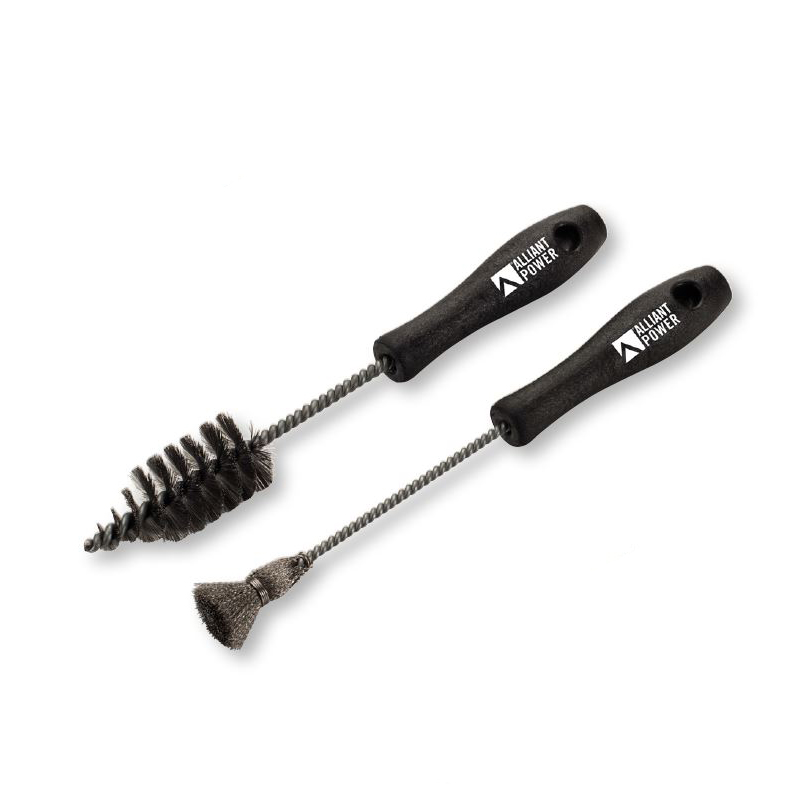

Injector Brush Kit
Purpose & Function:
Carbon buildup and debris in the injector bore can prevent proper sealing. A brush kit helps clean the injector’s bore and seat surface before reinstalling or replacing components. This helps to ensure proper injector seating, prevent compression leaks, and reduces contamination during installation.

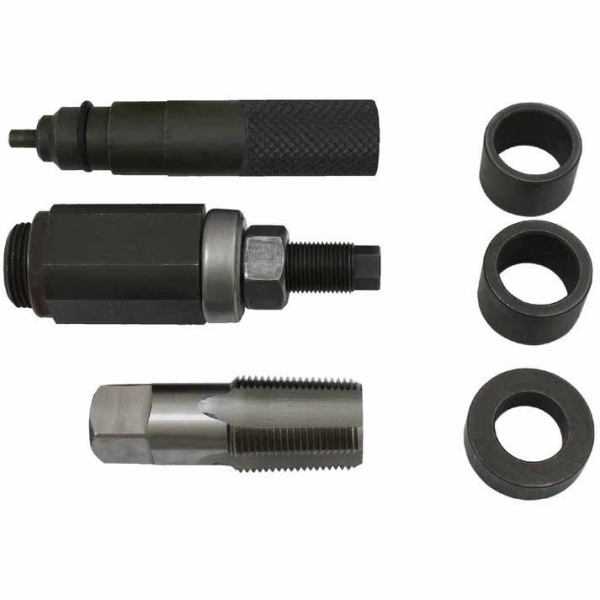

Injector Sleeve / Cup Tool
Purpose & Function:
If an injector sleeve (also referred to as an injector cup) needs replacement, this tool allows you to remove and install sleeves quickly and easily. Attempting to do so without the proper tool can be difficult and time-consuming.
Replacement Parts To Consider

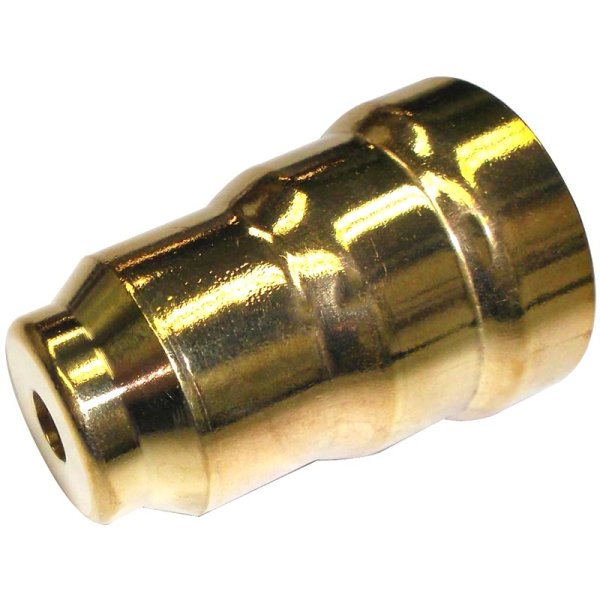

Fuel Injector Sleeves (Cups)
Why replace them?
Injector sleeves seal coolant from the combustion chamber. If they crack or fail, you can experience coolant contamination or misfires. These sleeves most commonly fail in engines that have overheated. However, as these engines age, many owners proactively replace them while the engine is torn down to avoid potential issues. Proper installation is critical to prevent coolant leaks. The 7.3L Power Stroke uses eight injector sleeves for a full replacement.
Tech Tip: Pressure testing the cooling system with the injectors removed can allow you to visually see if the cup is leaking, if the failure is not obvious.
Replace if:
- You notice coolant loss
- There are signs of leakage
- High mileage engine
- You want preventative peace of mind

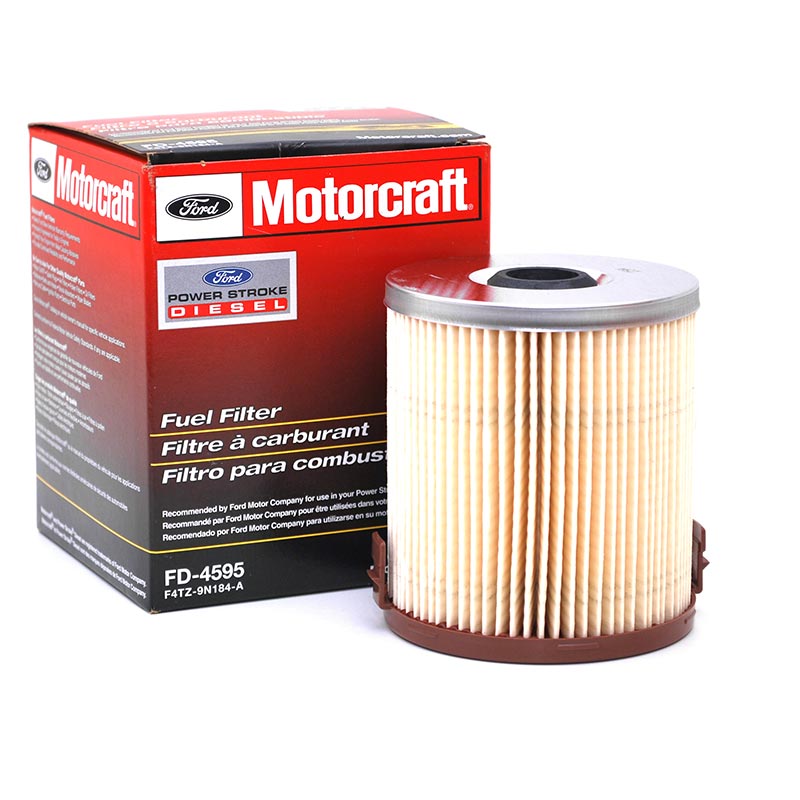

Fuel Filter (Strongly Recommended)
Why replace it?
Brand new injectors deserve clean fuel. Replacing the fuel filter helps prevent residual debris from contaminating your new injectors.

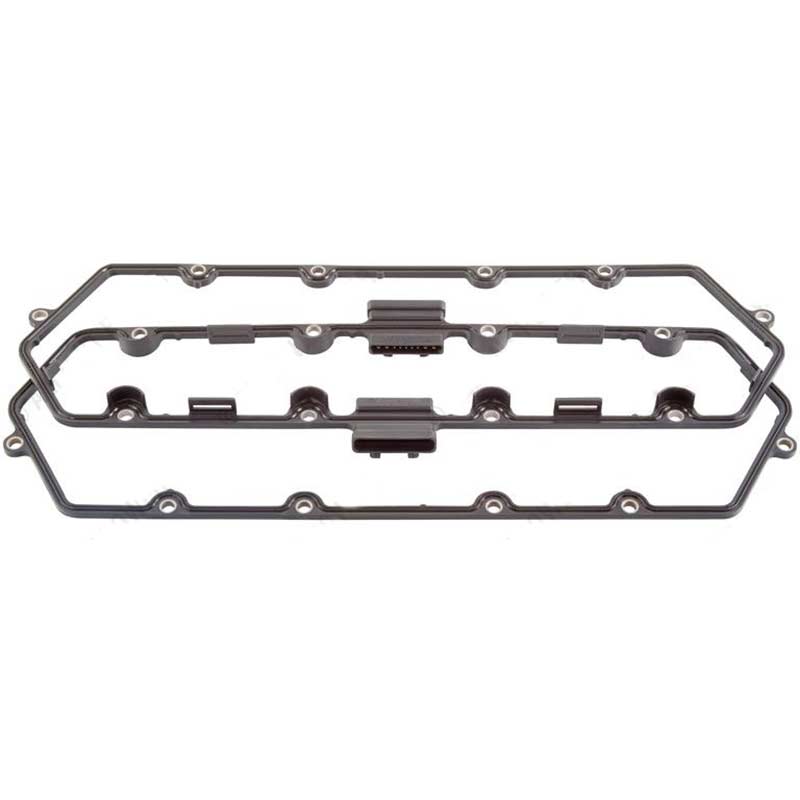

Valve Cover Gaskets
If you’re replacing all eight injectors, both valve covers will need to be removed. That makes it the perfect time to install new valve cover gaskets while you’re already in there. Replacing them now can help prevent future leaks and save you the hassle of tearing everything back apart later.
Tech Tip: Overtightening the valve cover bolts can warp the sheet metal valve covers or crack the gasket, resulting in leaks. Always refer to the manufacturer’s torque specifications when tightening bolts and fasteners.
When to replace:
- If leaking
- If brittle or compressed

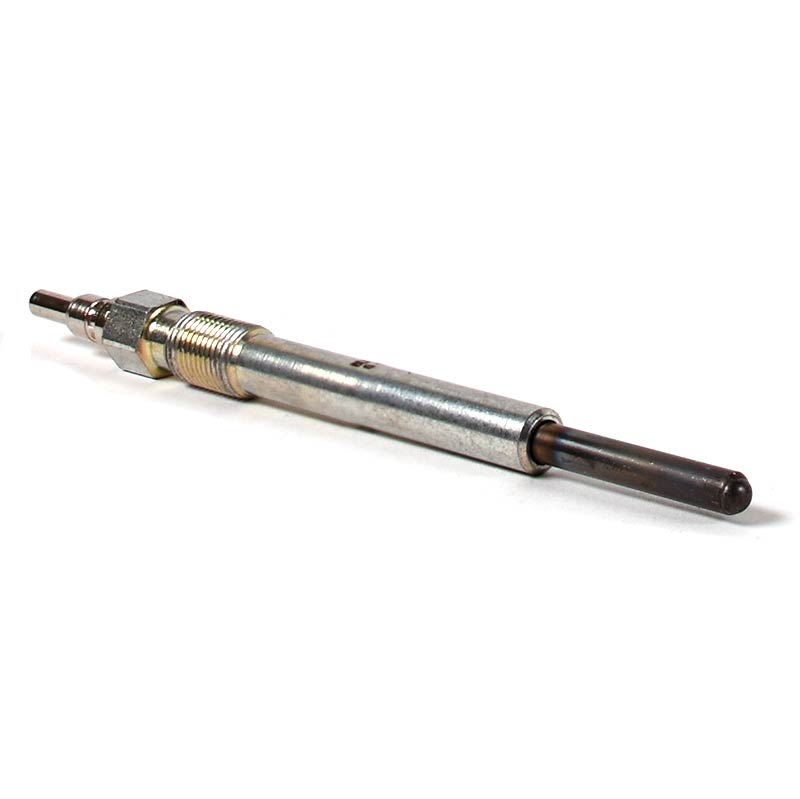

Glow Plugs
Why Replace Them?
This is an optional step when replacing the injectors on a 7.3L Power Stroke. Since you already have access, it’s a good time to replace them, especially if you have cold-start issues, live in a colder climate, or have high-mileage glow plugs.

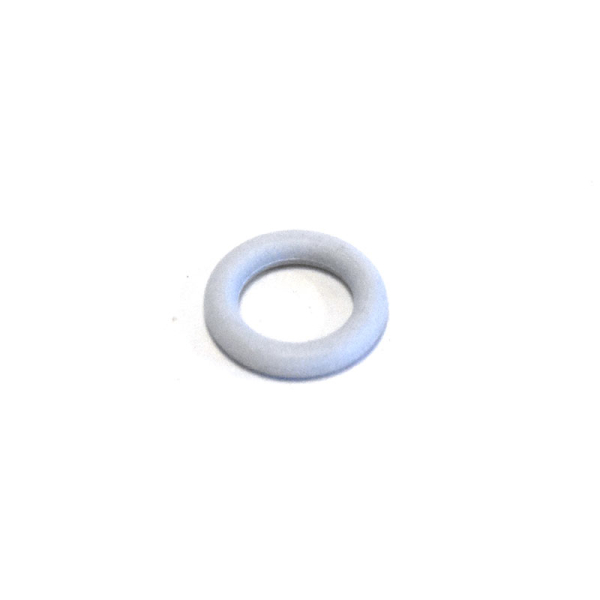

Crankcase Vent (CCV) O-Rings
Why Replace Them?
The CCV system has four O-rings: two small and two large. With the valve covers removed, the CCV system can be inspected. If the O-rings are brittle, flattened, or leaking, replacing them now helps prevent oil seepage and avoids a bigger mess down the road.
