USD 739.05
Part #: FASSTS D07 250G

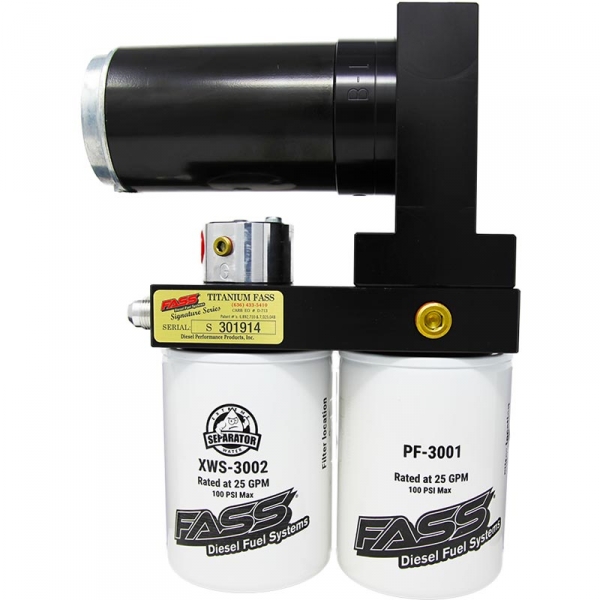

FASS TS D07 250G Titanium Signature Series 250GPH Fuel System

Vehicle Fitment:
2005-2018 Dodge 5.9L/6.7L Diesel | 2021-2022 Ram 6.7L Diesel | See full application list below
Part #: FASSTS D07 250G
★★★★★ ★★★★★ 3 Reviews
$739.05
Buy now, pay later using Affirm Logo during checkout.
In-Stock
FREE Delivery by ,
If you order within hr min
This product cannot be shipped to your destination
Not Shipping to ?
Need it faster?
Our Recommendations Compatible Products
Close
Scroll to View More

Description

The FASS TS D07 250G Titanium Signature Series 250GPH Fuel System with Whisper Technology is engineered to be the top performing, longest lasting and most reliable aftermarket filtration system on the market for your 2005-2018 Dodge 5.9L/6.7L Diesel or 2021-2022 Ram 6.7L Diesel. Rated at 250 gallons per hour and backed by a limited lifetime warranty, the Titanium Signature Series offers advanced filtration that will help protect your diesel fuel injection system, effectively extending the life of your Injection Pump and Injectors. These benefits include: improved filtration rating of 3 Microns, a built in water separation filter and FASS Fuel Systems patented air/vapor removal process. For use on extreme applications.

Titanium Signature Series
With over 2.5 years in the making, FASS has done extensive testing, research, and manufacturing on their Signature Series Fuel Systems. Featuring the FASS Whisper Technology specially designed to decrease pump noise, improve pump life, improve flow rate, and increase overall pump performance, the Signature Series provides you with the most reliable aftermarket fuel system in the industry.

FASS Silencing Technology (FST)
Developed by the engineering team at FASS Fuel Systems to help reduce the noise created by aftermarket fuel and air separation systems. By using radius cuts, tighter tolerances on all gears and a high quality military Specd Coating over the aluminum base, FASS Fuel Systems is able to develop the quietest fuel air separation system on the market.

Performance Radius Cuts (PRC)
An advanced machining technique used to improve the flow of fuel through the pump by creating smooth flowing cuts within the aluminum housing. This prevents the reintroduction of air and vapor back into the fuel and also to prevent stagnant fuel pockets from forming within the corner of a 90 degree bend.  FASS Titanium Signature Series Fuel Pumps are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90 degree fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.

Mass Flow Return (MFR)
Technology is used to continually "polish" your fuel by keeping a positive pressure on the fuel being delivered to the engine and returning the fuel, that's not yet needed, back to the tank after it has been passed through the filtration process, removing dirt, air, vapor and water. This means your fuel is constantly being moved and cleaned. This guarantees that your truck always has the freshest and cleanest fuel possible.

Bolt On Bracket Mounts
Old mounting styles required drilling or welding when mounting your pump. This has been simplified with the FASS bolt on brackets that utilize your factory bed bolt that secures your truck bed to the frame. Mounting the Titanium Signature Series Pump takes only minutes and all brackets are made from machined steel for durability, support and strength.

Features:
  • 250GPH @ 16-18 PSI
  • Whisper Technology
  • 3 Micron Filtration Rating
  • 30K Mile Filter Life Expectancy
  • Increases Efficiency, Performance & Smoother Idle
  • Optional Electric Heater & Fuel Pressure Gauge Port
  • Protects & Extends The Life Of Your Fuel System & Injectors
Shipping Restrictions Apply shipping restriction icon This product can not be shipped to these states/provinces: CA

Vehicle Fitment

YEAR MAKE FOR ENGINE SERIES
2005 Dodge 5.9L 24V Cummins
2006 Dodge 5.9L 24V Cummins
2007 Dodge 5.9L 24V Cummins
2007.5 Dodge 6.7L 24V Cummins
2008 Dodge 6.7L 24V Cummins
2009 Dodge 6.7L 24V Cummins
2010 Ram 6.7L 24V Cummins
2010 Dodge 6.7L 24V Cummins
2011 Ram 6.7L 24V Cummins
2011 Dodge 6.7L 24V Cummins
2012 Ram 6.7L 24V Cummins
2012 Dodge 6.7L 24V Cummins
2013 Ram 6.7L 24V Cummins
2013 Dodge 6.7L 24V Cummins
2014 Ram 6.7L 24V Cummins
2014 Dodge 6.7L 24V Cummins
2015 Ram 6.7L 24V Cummins
2015 Dodge 6.7L 24V Cummins
2016 Ram 6.7L 24V Cummins
2016 Dodge 6.7L 24V Cummins
2017 Ram 6.7L 24V Cummins
2017 Dodge 6.7L 24V Cummins
2018 Ram 6.7L 24V Cummins
2018 Dodge 6.7L 24V Cummins
2021 Ram 6.7L 24V Cummins
2021 Dodge 6.7L 24V Cummins
2022 Ram 6.7L 24V Cummins
2022 Dodge 6.7L 24V Cummins
Disclaimer: XDP is in no way affiliated with Cummins or any of its subsidiaries or related companies, and that Cummins has not authorized the sale of any of XDP's parts, and has not tested or approved any of XDP’s parts for use in genuine Cummins brand products.

Specifications

  • MPN TSD07250G
  • SKU FASSTS D07 250G
  • GTIN 850044106394
  • ID 34613
  • Manufacturer Name FASS
  • Shipping Weight 20.00 lb.
  • Shipping Length 14 in.
  • Shipping Width 20 in.
  • Shipping Height 10 in.
  • Fuel Type Diesel
  • E-Code 3
  • EO Number d-713-4
  • Warranty Info Limited Lifetime
  • Prop 65 Prop 65 WarningWARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
  • Cross Reference # TSD07250G
  • Internal L4R0

Reviews

★★★★★ ★★★★★
5.0/5 Stars out of 3 Reviews
1
0
2
0
3
0
4
0
5
3
Verified Buyer
2161519
5
Everything i have got from you guys comes just how I expect it and fast! Anything I need, I come to you guys.
Owner
5
Very quick shipping, great service to get the pump ordered. Easy install.
Verified Buyer
Great product
5
Product was packaged great. Install was simple and instructions where clear 1229433

Write a Review

Include Your Order Number For a Chance to Win a $100 Gift card

Overall Rating

Your Information

Email Address will not be made public.

Questions and Answers

Is this a full ready to go bolt on kit?
View Staff Answer
Answer
Yes. The FASS TS D07 250G Titanium Signature Series 250GPH Fuel System is a full bolt-on fuel system for the 2005-2018 Dodge/RAM 5.9L/6.7L Diesel pickups.
Does it come with all hoses and wires filters?
View Staff Answer
Answer
Yes, the FASS TS D07 250G Titanium Signature Series 250GPH Fuel System comes with everything you need for installation.
